LP3-F1A321W

OTTLP3_F1A321W
Heilind Number:OTTLP3-F1A321W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F1A321W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

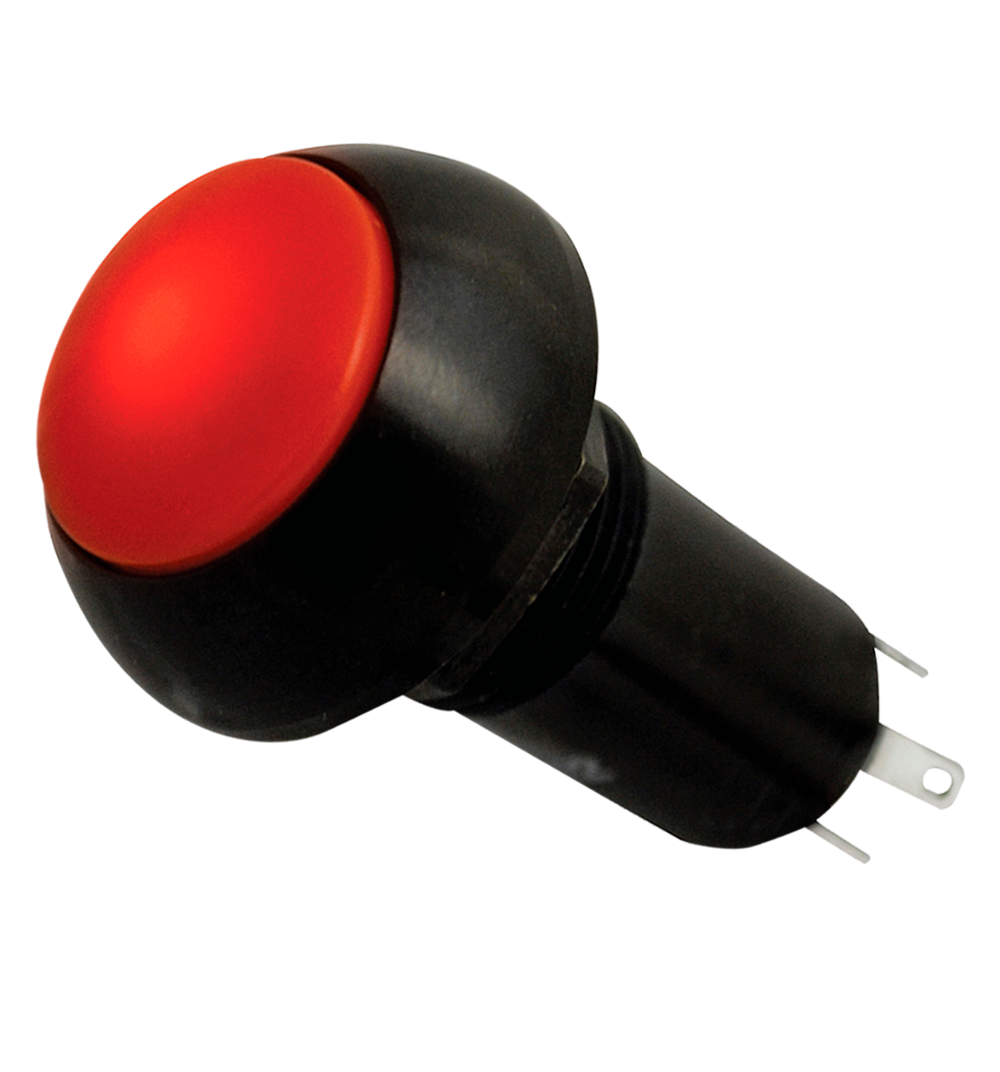

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F1A321W
Series:LP3
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.49 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-F1A321W

Detailed Description

Our LP3 series Push Button Switch, SKU LP3-F1A321W, is a versatile and reliable choice for various applications. Featuring a White Translucent cap with IP6K8S rating for excellent dust and water resistance, this switch ensures durability even in harsh environments. The sleek Black housing houses an Illuminated Button with a Flush Dome actuator, making it easy to locate and operate. With a current rating of 5A and contact plating in Silver, it offers efficient conductivity. The SPST-NO contact configuration guarantees reliable performance, while the Sealed construction and quick connect termination type simplify installation. Operating between -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of setups. Whether in industrial machinery or consumer electronics, the LP3F1A321W provides seamless momentary action, with a lifespan of 25,000 cycles, making it a dependable component in any project.
