LP3-F1C122A

OTTLP3_F1C122A
Heilind Number:OTTLP3-F1C122A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F1C122A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

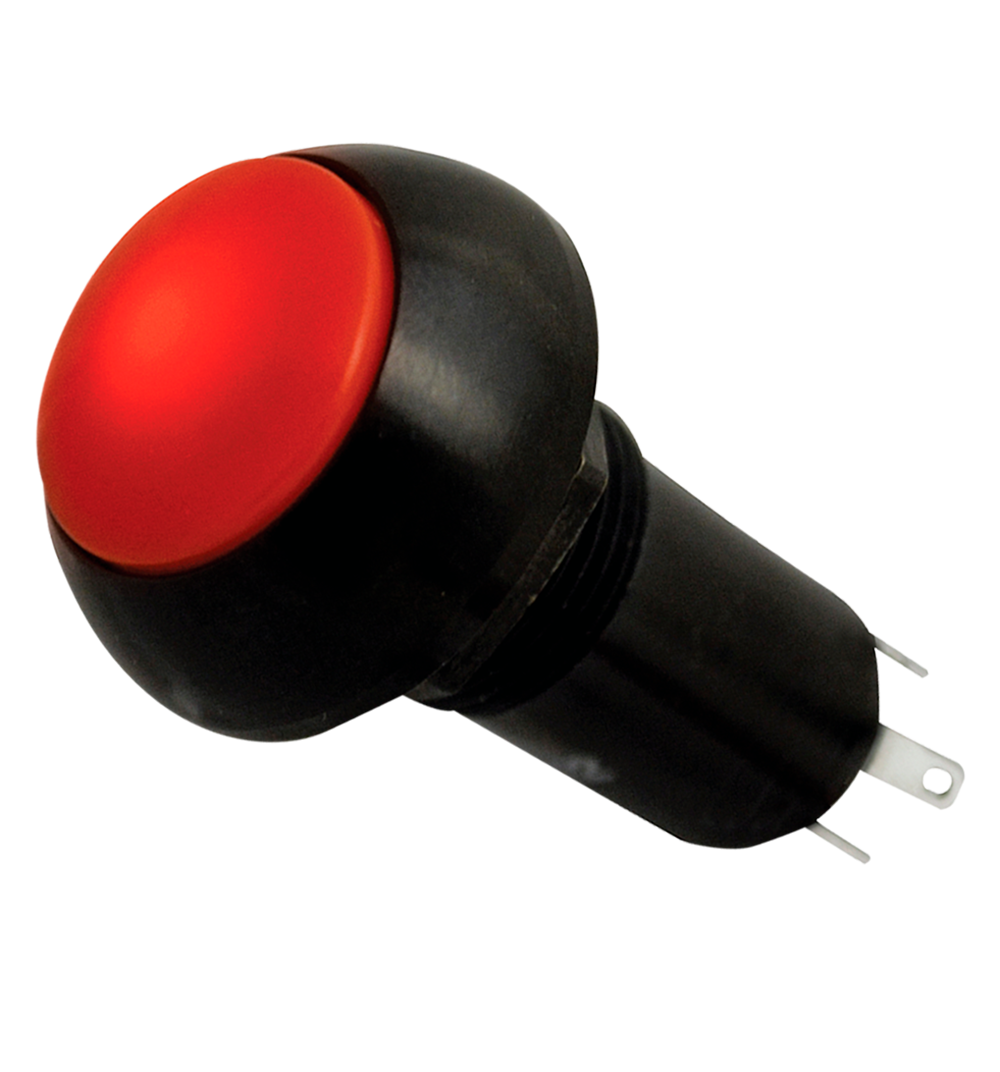

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F1C122A
Series:LP3
Cap Color:Amber - Translucent
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.49 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-F1C122A

Detailed Description

The LP3 Series Illuminated Sealed Pushbutton Switch ( LP3-F1C122A) offers reliable momentary action control in industrial settings. Featuring a durable aluminum housing with a sleek black case and a translucent amber button, this panel-mount switch is both visually appealing and functional. Its flush dome button design ensures comfortable actuation, while silver-plated brass contacts guarantee high conductivity. With a 5A current rating, it can handle demanding applications with ease. The SPST-NO contact configuration and off-(on) switch function make it ideal for power control operations. Built for longevity, this switch has a 25,000-cycle durability rating and can operate in temperatures ranging from -55°C to 85°C. Whether you need AC or DC voltage control, the LP3 switch is versatile, with ratings of 115VAC and 28VDC respectively. The amber illumination, powered by 2V, adds a visual indicator to its functionality. Perfect for use in various industries, the LP3 is a high-quality, reliable solution for your pushbutton switch needs.
