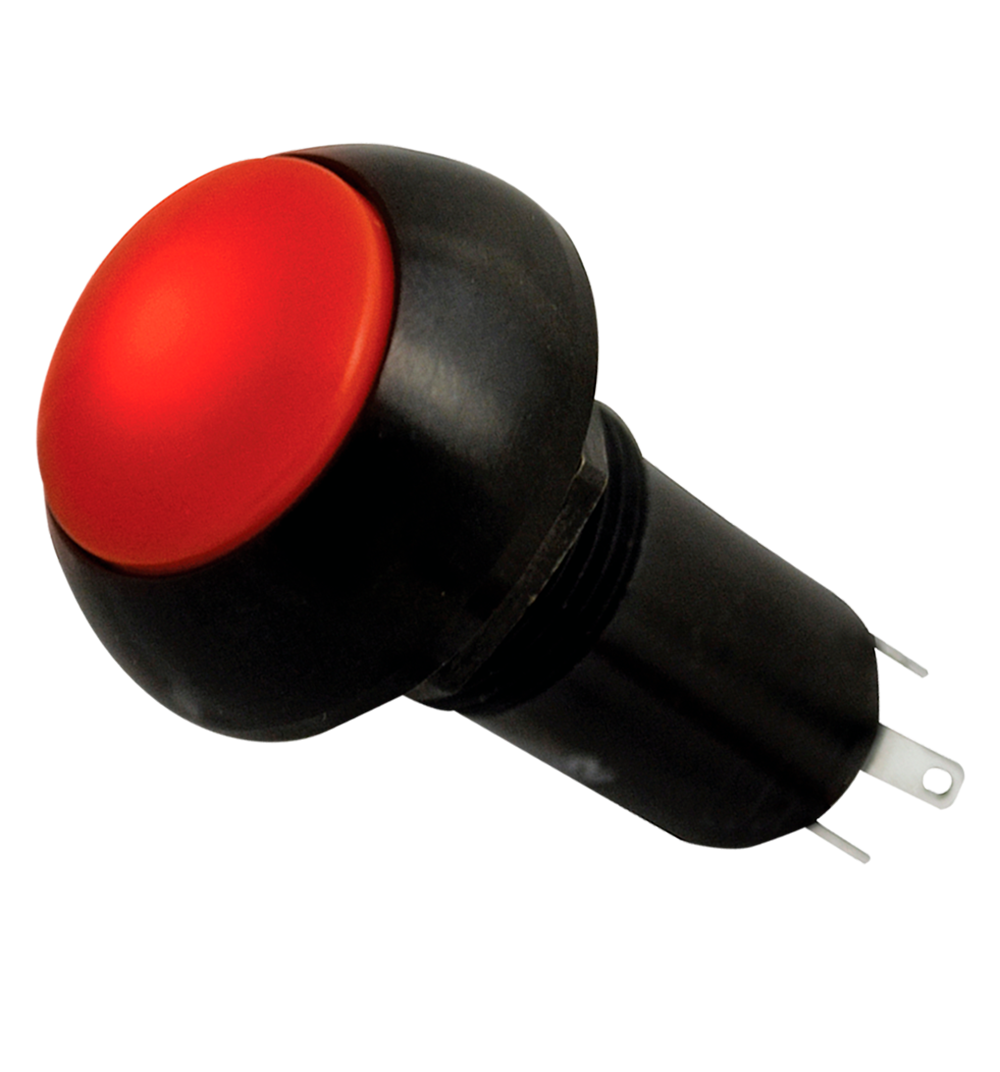

LP3-F1J352A

OTTLP3_F1J352A
Heilind Number:OTTLP3-F1J352A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F1J352A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F1J352A
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.49 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-F1J352A

Detailed Description

Introducing the LP3 Series Illuminated Sealed Pushbutton Switch, SKU LP3-F1J352A, designed for reliable performance in demanding environments. Featuring a durable aluminum housing with a sleek black finish, this switch is perfect for panel mounting applications. The flush dome button, crafted from high-quality thermoplastic, offers a comfortable actuation experience. With an IP6K8S rating, it ensures protection against dust and water ingress. The amber translucent cap and illumination, powered by a 12V voltage source, provide clear visibility. Operating at temperatures ranging from -55°C to 85°C, and rated for 25,000 cycles, this switch guarantees long-lasting functionality. The SPST-NO contact configuration, with silver-plated brass contacts, ensures efficient electrical connectivity. Ideal for a variety of industrial and commercial uses, this pushbutton switch is a versatile and dependable choice.
