LP3-F1K222R

OTTLP3_F1K222R
Heilind Number:OTTLP3-F1K222R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F1K222R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

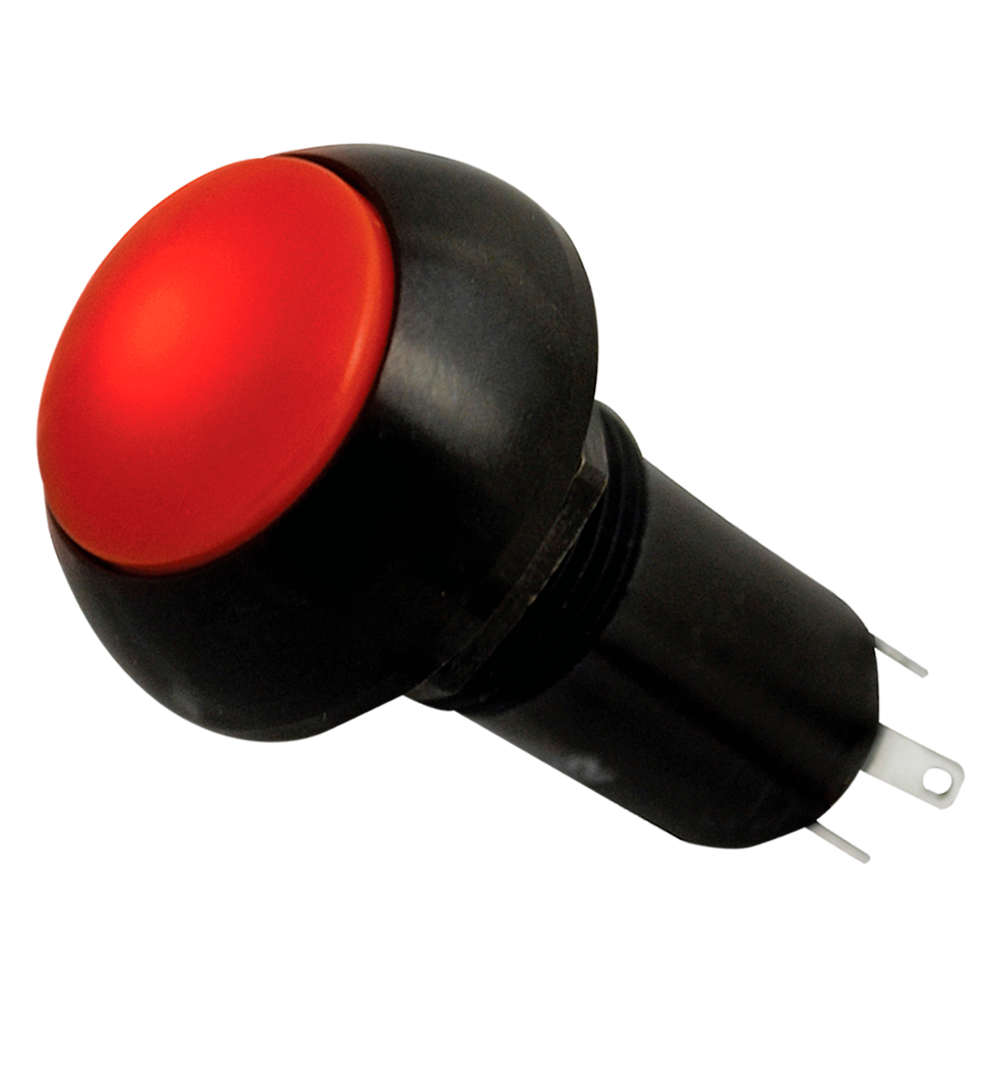

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F1K222R
Series:LP3
Cap Color:Red - Translucent
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.49 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-F1K222R

Detailed Description

The LP3F1K222R is a high-performance pushbutton switch designed for reliable operation in demanding environments. With a durable aluminum housing and sealed construction, it offers IP6K4S rated protection against water and dust ingress. The red translucent flush dome button provides illuminated feedback, making it ideal for low-light conditions. Featuring a momentary action SPST-NO contact configuration, it ensures precise control with a 5A current rating. The switch is panel mountable and operates at temperatures ranging from -55°C to 85°C, making it suitable for a wide range of applications. With a lifespan of 25,000 cycles and a voltage rating of 115VAC/28VDC, the LP3F1K222R is a reliable choice for industrial and automotive use.
