LP3-F1K322R

OTTLP3_F1K322R
Heilind Number:OTTLP3-F1K322R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F1K322R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

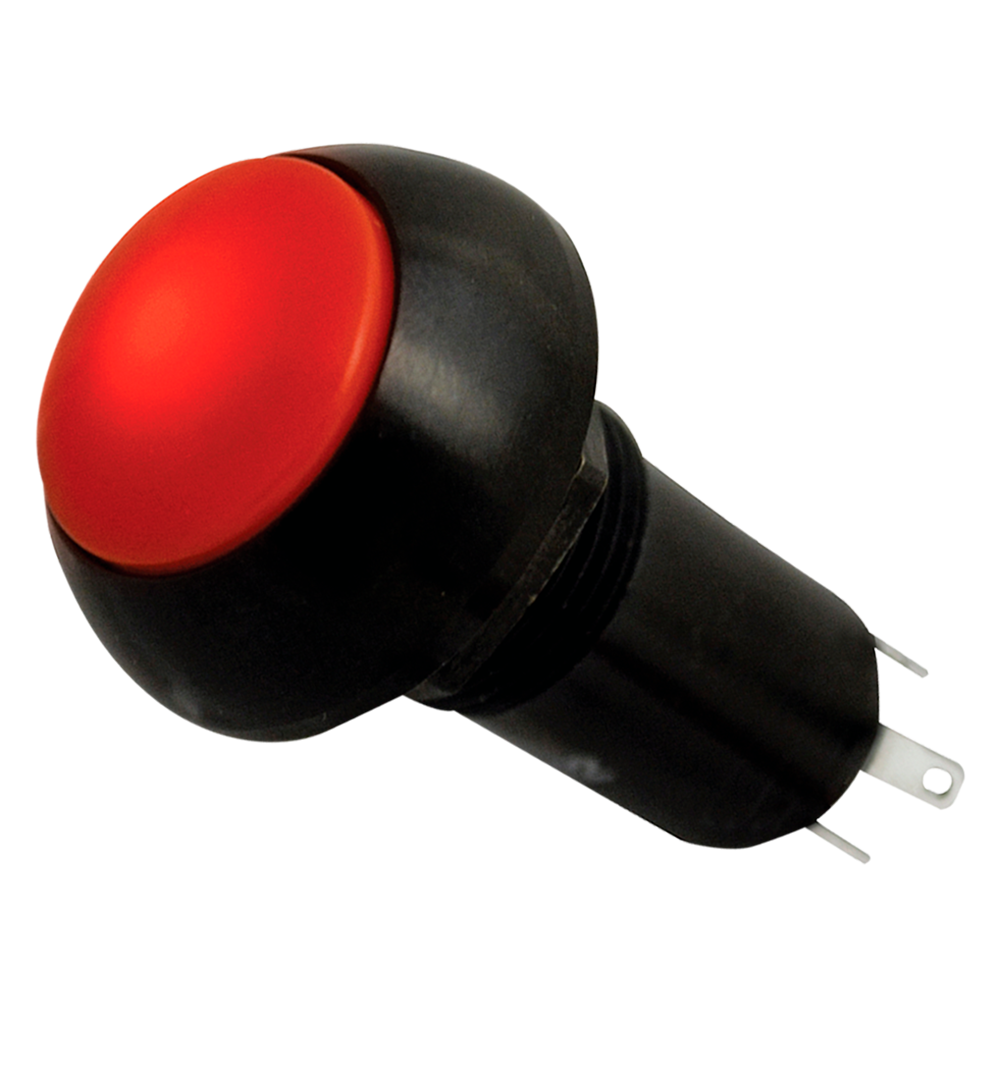

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F1K322R
Series:LP3
Cap Color:Red - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.49 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-F1K322R

Detailed Description

The LP3 series Push Button Switch, SKU LP3-F1K322R, is a high-performance component designed for demanding applications. Featuring a durable aluminum housing and a sealed construction, this switch is IP6K8S rated, ensuring reliable operation in harsh environments. The red translucent flush dome button provides illuminated feedback, with a 24V voltage rating for the LED. With a contact configuration of SPST-NO and a current rating of 5A, it offers versatile functionality. The momentary action design and 25,000 cycle durability rating guarantee long-lasting performance. Suitable for panel mounting, the switch has a black case color and quick connect termination. Operating temperature ranging from -55°C to 85°C, it is ideal for use in a wide range of industrial and commercial settings. The LP3F1K322R is a top choice for applications that require a rugged, illuminated push button switch.
