LP3-F1M322A

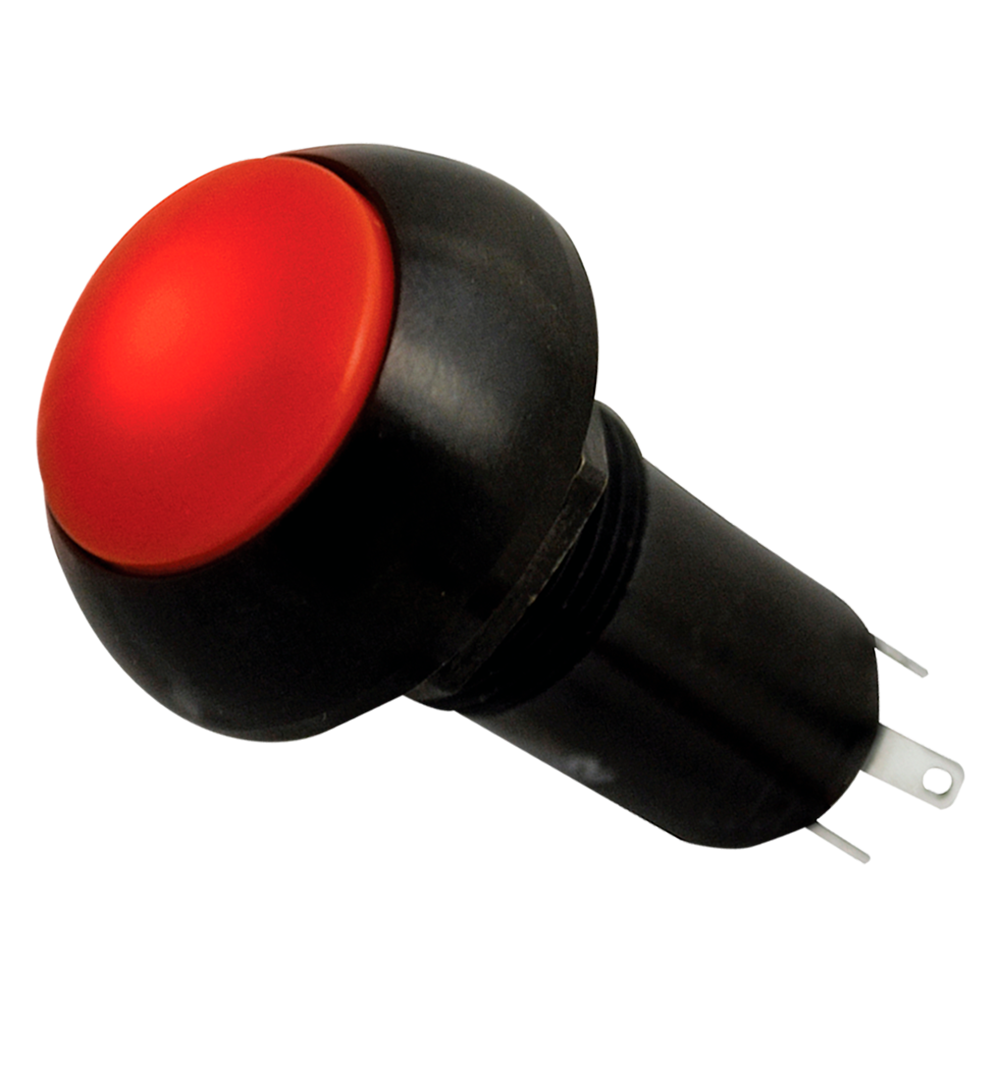

OTTLP3_F1M322A
Heilind Number:OTTLP3-F1M322A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F1M322A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F1M322A
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.49 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
SKU:OTTLP3-F1M322A

Detailed Description

The LP3 series pushbutton switch, SKU LP3-F1M322A, offers reliable and illuminated functionality in a durable package. With a flush dome button actuator and round shape, it provides a satisfying tactile experience. Featuring a sealed design with an IP6K8S rating, it ensures protection against dust and water ingress. The amber translucent cap color and silver contact plating add to its visual appeal and conductivity. Ideal for panel mounting, this switch is suitable for various applications. Operating at temperatures ranging from -55°C to 85°C and with a 25,000 cycle durability rating, it guarantees long-term performance. The SPST-NO contact configuration and momentary action make it versatile for different setups. Rated for 115VAC and 28VDC, with an illumination voltage of 24V, it offers flexibility in power requirements. The LP3F1M322A is a dependable solution for industrial, automotive, and electronic systems.
