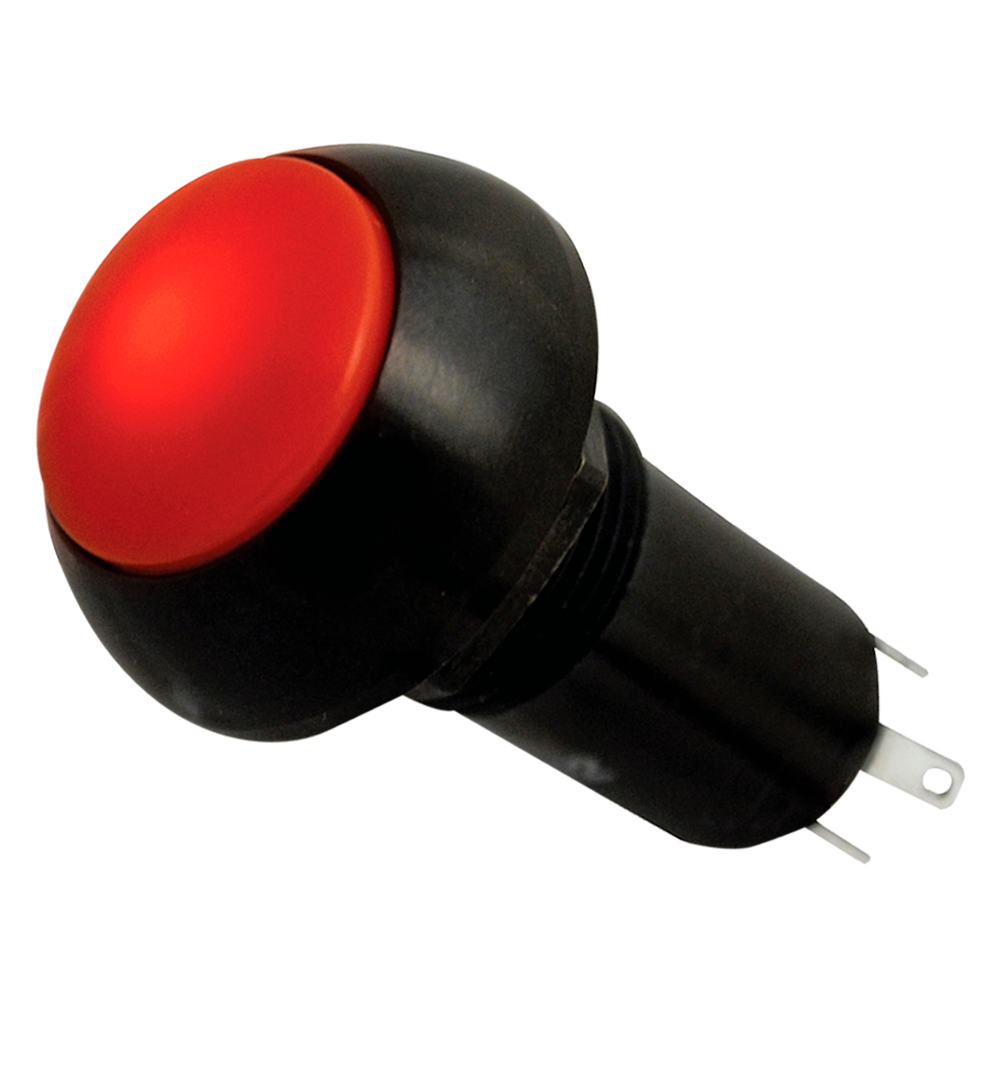

LP3-F3A322R

OTTLP3_F3A322R
Heilind Number:OTTLP3-F3A322R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F3A322R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F3A322R
Series:LP3
Cap Color:Red - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.49 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-F3A322R

Detailed Description

The LP3 Series LP3F3A322R Pushbutton Switch offers reliable performance in demanding environments. With a durable aluminum housing and a high IP6K8S rating, this switch is sealed to prevent dust and water ingress, making it ideal for industrial applications. The red translucent button, illuminated with a 2V voltage, provides clear status indication. The momentary action design and SPDT contact configuration ensure precise control. Operating at temperatures ranging from -55°C to 85°C, and with a 25,000 cycle durability rating, this switch guarantees long-lasting functionality. Suitable for panel mounting, it features a flush dome actuator for easy operation. With a maximum voltage rating of 115VAC and 28VDC, this switch is versatile and dependable. Upgrade your control system with the LP3F3A322R for efficient and safe operation.
