LP3-F3C322A

OTTLP3_F3C322A
Heilind Number:OTTLP3-F3C322A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F3C322A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

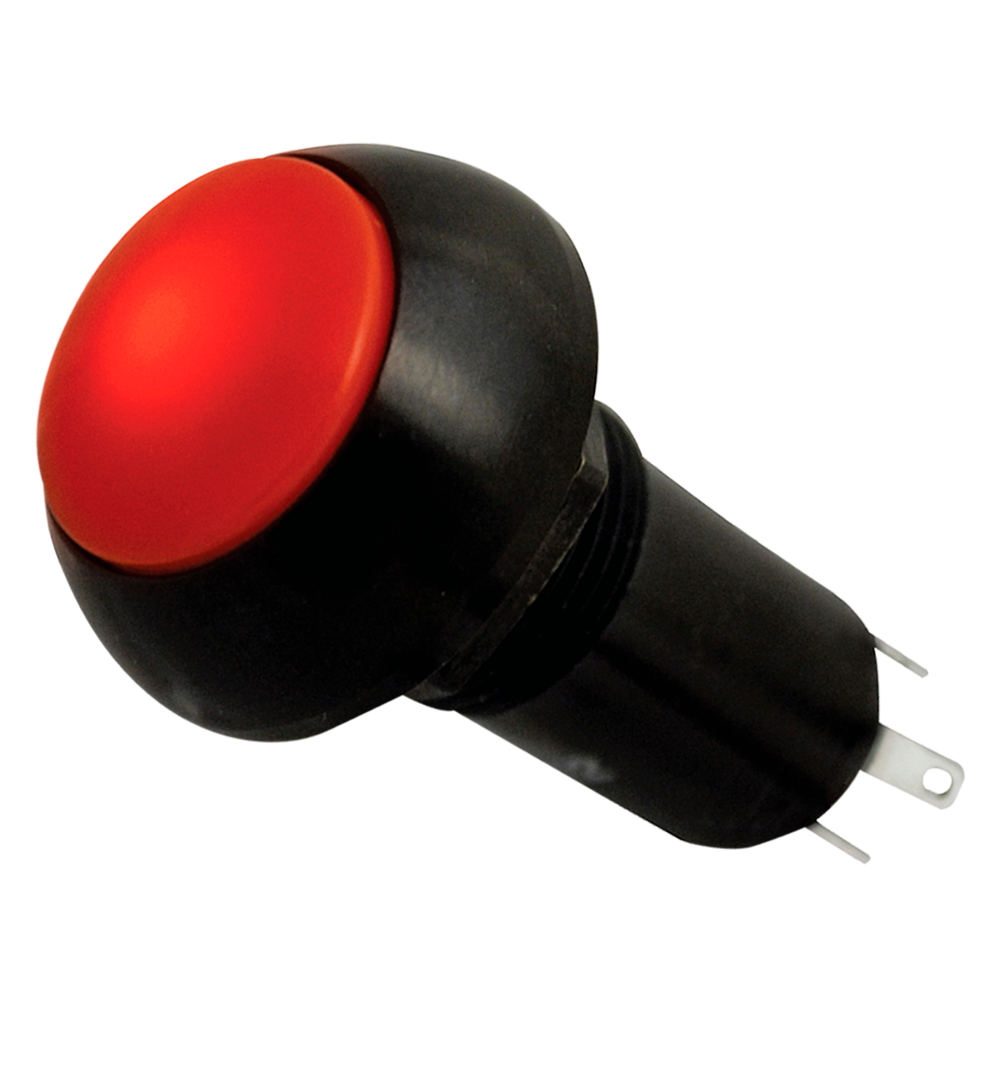

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F3C322A
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.49 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP3-F3C322A

Detailed Description

The LP3 series LP3-F3C322A pushbutton switch is a reliable and durable solution for momentary action control applications. Featuring a sleek black aluminum case with a flush dome amber translucent button, this switch offers both functionality and style. With an IP6K8S sealing rating, it ensures protection against dust and water ingress, ideal for use in various environments. The SPDT contact configuration, along with a 5A current rating, guarantees efficient performance. Illuminated with an amber LED, the switch provides visual feedback, while the 25,000 cycle durability rating ensures long-lasting operation. Suitable for panel mounting, it is easy to install with quick connect terminations. Operating between -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, this switch is versatile and reliable for a wide range of applications.
