LP3-F3M352A

OTTLP3_F3M352A
Heilind Number:OTTLP3-F3M352A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-F3M352A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

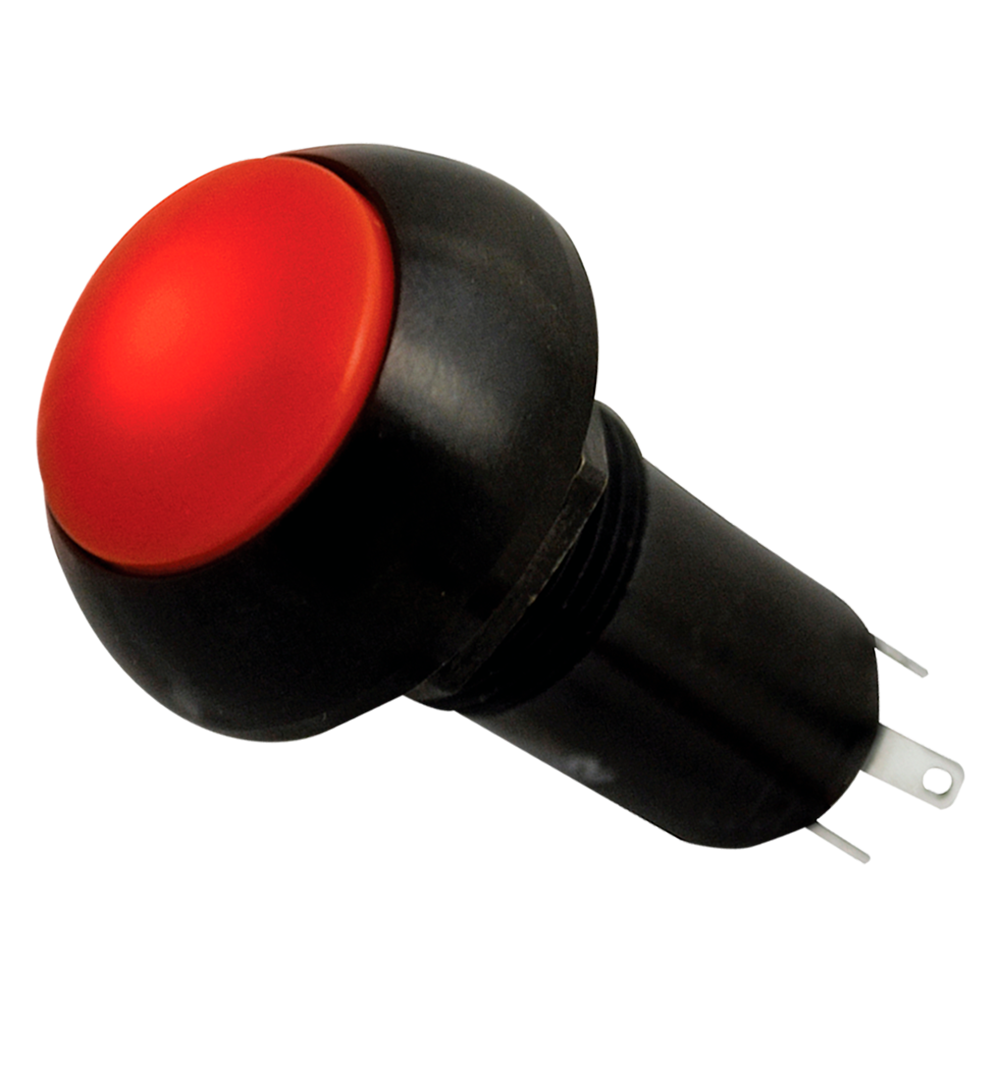

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-F3M352A
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.49 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
SKU:OTTLP3-F3M352A

Detailed Description

Introducing the LP3 Illuminated Sealed Momentary Action Pushbutton Switch, SKU LP3-F3M352A. Designed for durability with a 25,000 cycle rating, this switch features a sleek black aluminum case and a flush dome amber translucent button, making it both stylish and functional. With an IP6K8S rating, it offers reliable protection against dust and water ingress. The SPST-NO contact configuration and 5A current rating ensure efficient operation. Suitable for panel mounting, it guarantees easy installation. The amber illumination, with a voltage rating of 24V, provides clear visual feedback. From industrial machinery to automotive applications, this high-quality pushbutton switch is a versatile solution for various electronic control systems.
