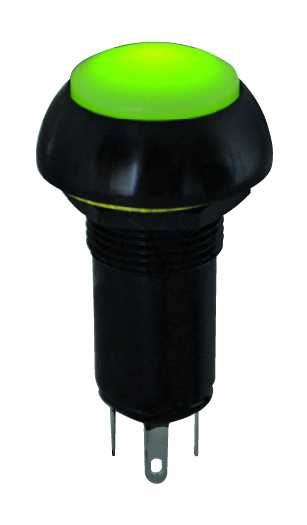

LP3-R1B321W

OTTLP3_R1B321W
Heilind Number:OTTLP3-R1B321W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-R1B321W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-R1B321W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.51 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP3-R1B321W

Detailed Description

The LP3-R1B321W is a high-performance pushbutton switch designed for reliable operation in demanding environments. With a durable aluminum housing and sealed construction, it offers IP6K8S protection against dust and water ingress. The illuminated button, featuring a raised dome actuator with a round shape, provides tactile feedback and visual indication of its status. Rated for 5A current and with a contact configuration of SPST-NO, it ensures efficient power control. The switch can handle voltages up to 115VAC/28VDC, making it suitable for a variety of applications. Its green LED illumination, with a voltage of 2V, guarantees clear visibility in dimly lit conditions. Operating within a wide temperature range of -55°C to 85°C, and with a durability rating of 25,000 cycles, this pushbutton switch offers long-lasting performance. Ideal for panel mounting, its quick-connect termination type facilitates easy installation. Whether in industrial machinery or automotive systems, the LP3R1B321W excels in providing reliable momentary action control.
