LP3-R1F322A

OTTLP3_R1F322A
Heilind Number:OTTLP3-R1F322A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-R1F322A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

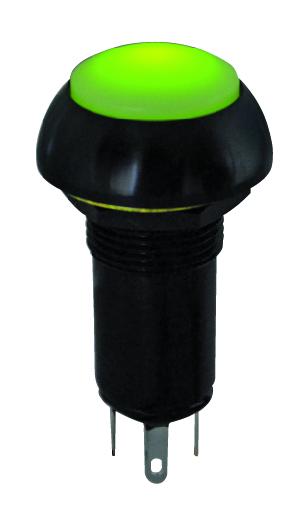

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-R1F322A
Series:LP3
Cap Color:Amber - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.51 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:6 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-R1F322A

Detailed Description

The LP3 series pushbutton switch, SKU LP3-R1F322A, boasts a durable design featuring a black aluminum case with an amber-translucent illuminated button for easy visibility. With an IP6K8S rating, this sealed switch ensures reliable performance even in harsh environments. The momentary action, SPST-NO configuration, and 5A current rating make it ideal for various applications. The raised dome round actuator, made of thermoplastic, offers comfortable operation. Silver-plated brass contacts guarantee efficient conductivity, and a 25,000-cycle durability rating ensures long-term use. Operating between -55°C to 85°C, this switch is suitable for diverse settings. Whether mounted on a panel or used in Hi-Rel applications, its 115VAC/28VDC voltage ratings and 6V illumination voltage cater to different power needs. A versatile solution in the LP3 series, the LP3R1F322A is a dependable choice in the realm of push-button switches.
