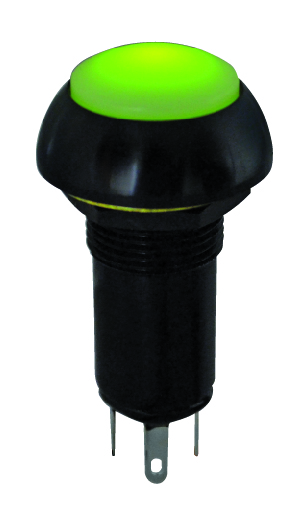

LP3-R4A351W

OTTLP3_R4A351W
Heilind Number:OTTLP3-R4A351W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-R4A351W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-R4A351W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.51 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):250,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3-R4A351W

Detailed Description

Introducing the LP3R4A351W, a cutting-edge momentary action pushbutton switch designed for seamless operation in a wide range of applications. With its durable construction and sealed design, this switch guarantees reliable performance even in challenging environments. The sleek silver case houses a high-quality brass contact material plated with gold, ensuring optimal conductivity and longevity. Featuring a red illuminated button with a translucent white cap, visibility is enhanced, while the raised dome actuator offers tactile feedback. Rated for 250,000 cycles of use, this switch is built to last. Suitable for panel mounting, it is easy to install with quick connect terminations. Operating between -55°C to 85°C and with a voltage rating of 3-28 VDC, it offers versatility and stability. Trust the LP3R4A351W for your switching needs.
