LP3-V11A3211

OTTLP3_V11A3211
Heilind Number:OTTLP3-V11A3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11A3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

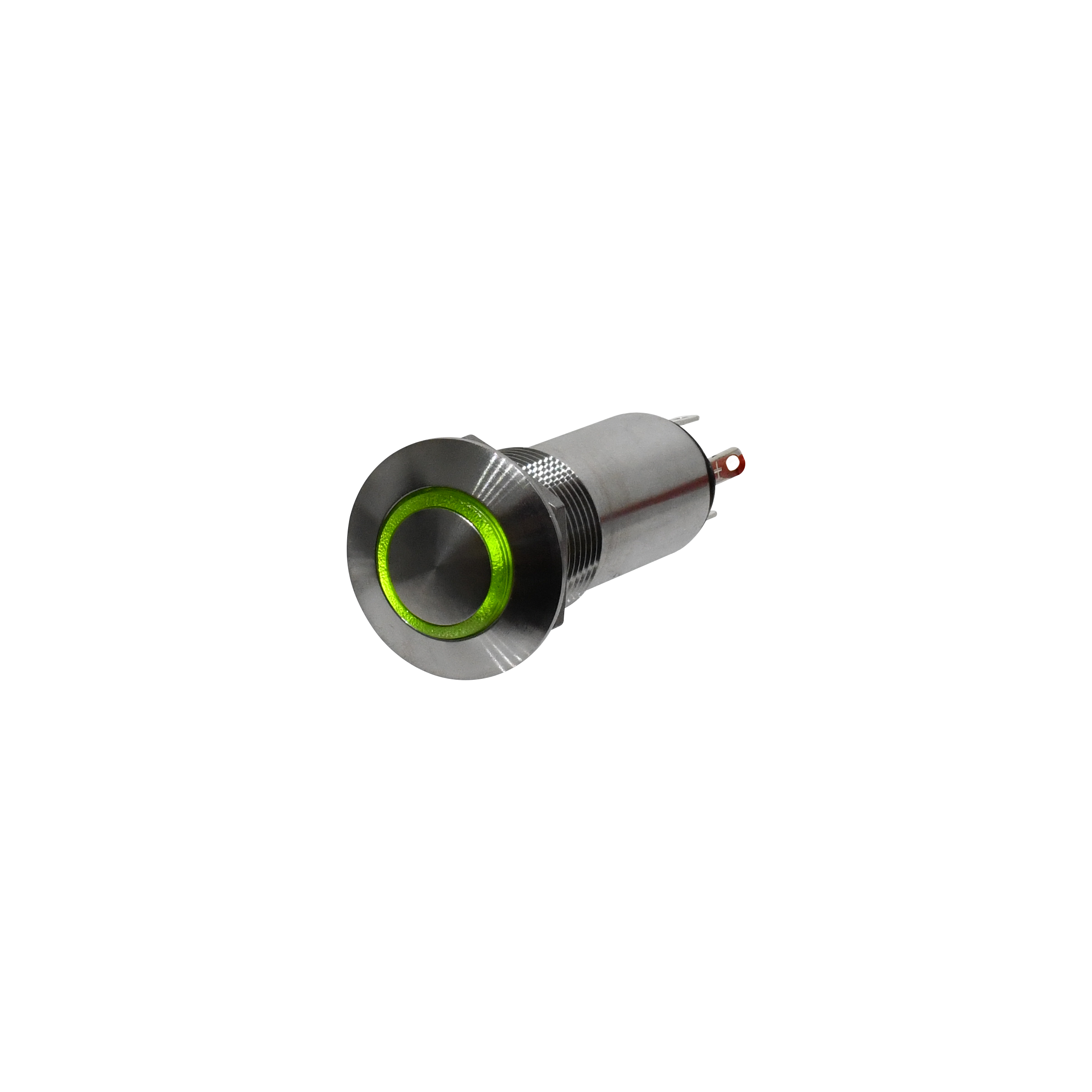

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11A3211
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V11A3211

Detailed Description

The LP3-V11A3211 is a rugged and reliable pushbutton switch designed for demanding environments. Featuring a high-profile flat button with a round shape, this switch is easy to operate and provides tactile feedback. The stainless steel housing and silver contact plating ensure durability and long-lasting performance, with a rating of 25,000 cycles. With an IP6K8S rating, it is sealed against dust and water ingress, making it ideal for outdoor or industrial use. The red illuminated button provides clear indication of its status, with a 2V illumination voltage. Operating at temperatures ranging from -55°C to 85°C, and with a current rating of 5A, this switch is suitable for a wide range of applications. Panel mount installation and solder termination make it easy to integrate into your system. Trust the LP3-V11A3211 for reliable and responsive control in even the harshest conditions.
