LP3-V11A3215

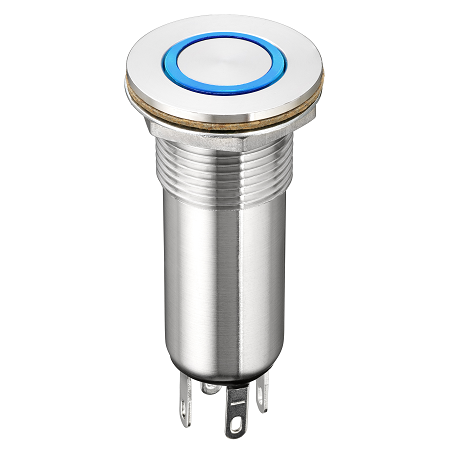

OTTLP3_V11A3215
Heilind Number:OTTLP3-V11A3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11A3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11A3215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3-V11A3215

Detailed Description

The LP3-V11A3215 is a rugged and reliable pushbutton switch, designed for demanding environments. Featuring a durable stainless steel construction with a sleek silver finish, this switch is both vandal resistant and sealed to IP6K8S standards. The illuminated red button provides clear indication of operation, with a low voltage requirement for energy efficiency. With a momentary action and a high current rating of 5A, it is suitable for a wide range of applications. The SPST-NO contact configuration ensures reliable performance, while the solder termination type allows for easy installation. Rated for 25,000 cycles of use, this switch guarantees long-lasting durability. Whether used in industrial machinery or outdoor equipment, the LP3-V11A3215 is the ideal choice for dependable switching control.
