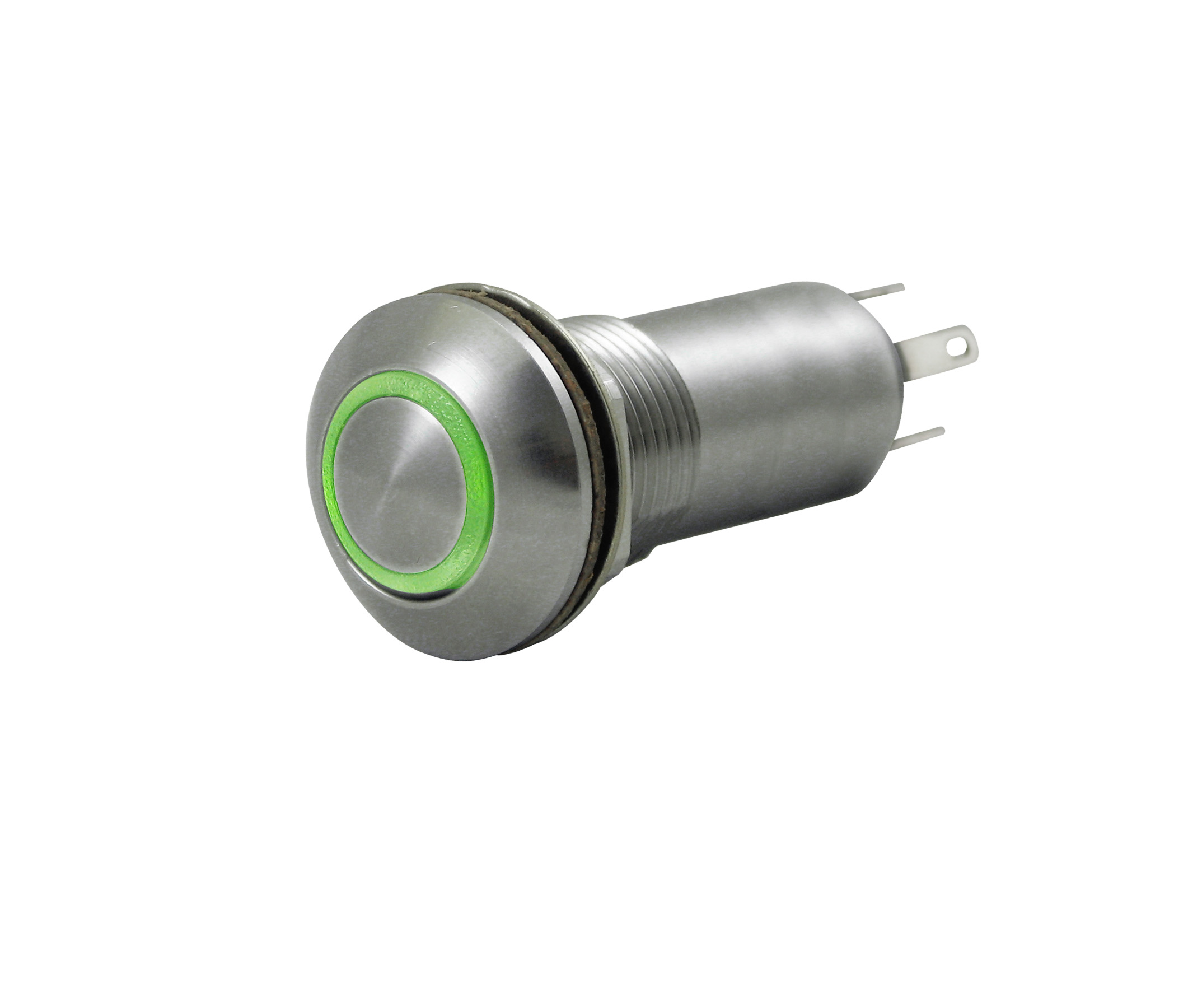

LP3-V11B3213

OTTLP3_V11B3213
Heilind Number:OTTLP3-V11B3213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11B3213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11B3213
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP3-V11B3213

Detailed Description

The LP3-V11B3213 pushbutton switch is a durable and reliable solution for demanding environments. With its vandal-resistant stainless steel construction and sealed design, it can withstand harsh conditions with ease. The illuminated green button offers clear visibility, while the momentary action ensures quick and efficient operation. Rated for 25,000 cycles, this switch is built to last. Featuring a SPST-NO contact configuration and a maximum operating temperature of 85°C, it is suitable for a wide range of applications. Panel mount installation and solder termination make it easy to integrate into your system. Whether you need a rugged switch for industrial equipment or outdoor machinery, the LP3-V11B3213 is the perfect choice.
