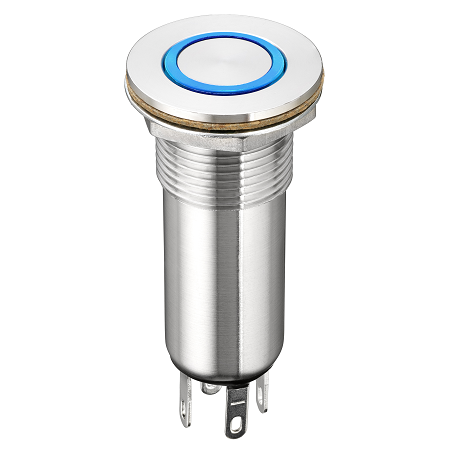

LP3-V11B3215

OTTLP3_V11B3215
Heilind Number:OTTLP3-V11B3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11B3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11B3215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP3-V11B3215

Detailed Description

Introducing the LP3-V Vandal Resistant Pushbutton Switch, a rugged and durable solution for your control panel needs. This sleek silver switch features a flat flush profile button, perfect for high traffic environments. With an IP68S rating, it is fully sealed against dust and water ingress, ensuring reliable performance in harsh conditions. Illuminated with a vibrant green LED, it provides clear visual feedback, even in low light settings. The momentary action design, combined with a stainless steel housing and actuator, guarantees a long lifespan of 25,000 cycles. Rated for 5A at 115VAC and 28VDC, it is suitable for a wide range of applications. Panel mountable for easy installation, with solder termination. Trust in the LP3-V for dependable operation in industrial, automotive, and marine settings.
