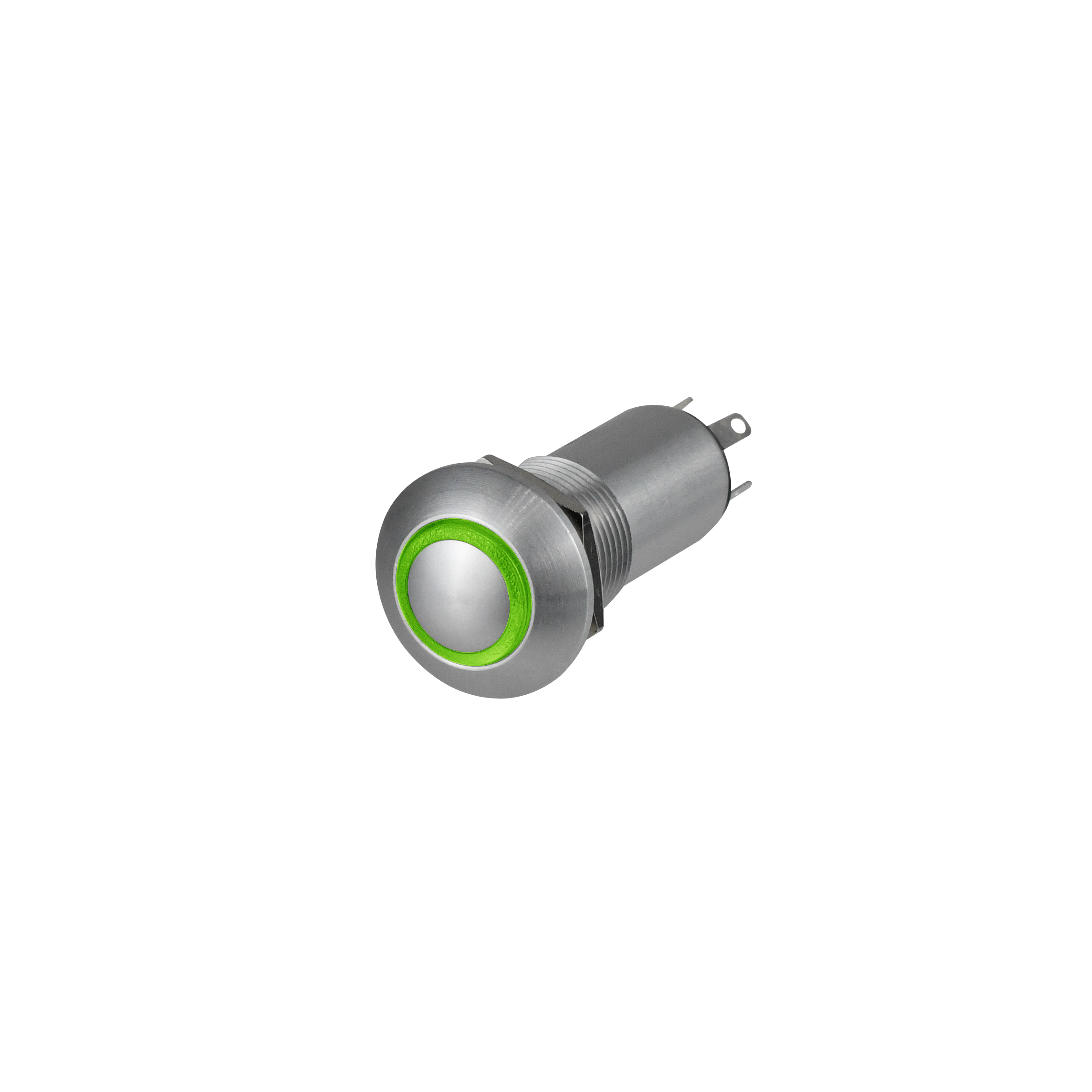

LP3-V11C2212

OTTLP3_V11C2212
Heilind Number:OTTLP3-V11C2212
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11C2212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11C2212
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K4S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V11C2212

Detailed Description

Introducing the LP3-V Series Pushbutton Switch, the ultimate solution for reliable and secure operation in demanding environments. Featuring a rugged stainless steel construction with a sleek silver finish, this Vandal Resistant switch is built to withstand the toughest conditions. With an IP6K4S rating for dust and water resistance, along with a durability rating of 25,000 cycles, you can trust in its performance. The illuminated button, with a high-profile curved design, not only enhances visibility but also adds a touch of sophistication. Its momentary action and SPST-NO contact configuration ensure precise control, while the solder termination type offers easy installation. With a wide operating temperature range of -55°C to 85°C and voltage ratings of 115VAC and 28VDC, this switch is suitable for a variety of applications. Upgrade to the LP3-V11C2212 for uncompromising quality and reliability.
