LP3-V11G3215

OTTLP3_V11G3215
Heilind Number:OTTLP3-V11G3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11G3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

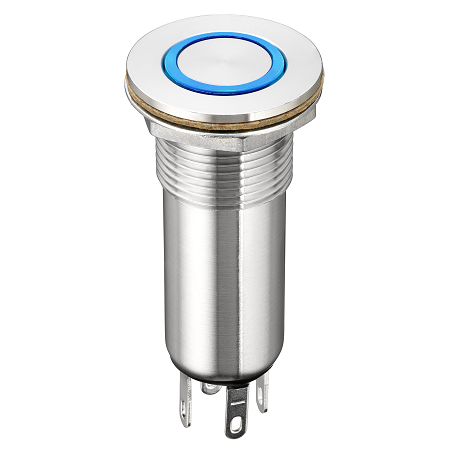

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11G3215
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Flush Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.05 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V11G3215

Detailed Description

Introducing the LP3-V Series Illuminated Pushbutton Switch, featuring a sleek silver design with a durable stainless steel housing. This vandal-resistant switch is perfect for applications requiring a high level of reliability, with an IP6K8S rating ensuring protection against dust and water ingress. The red illuminated button provides clear indication of its status, while the momentary action and SPST-NO contact configuration make it ideal for use in control panels and industrial equipment. With a maximum operating temperature of 85°C and a lifespan of 25,000 cycles, this switch is built to withstand harsh environments. Panel mount installation and solder termination offer easy integration, while the 115 VAC and 28 VDC voltage ratings ensure compatibility with a wide range of systems. Trust in the LP3-V11G3215 for dependable performance in any application.
