LP3-V11H3213

OTTLP3_V11H3213
Heilind Number:OTTLP3-V11H3213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11H3213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

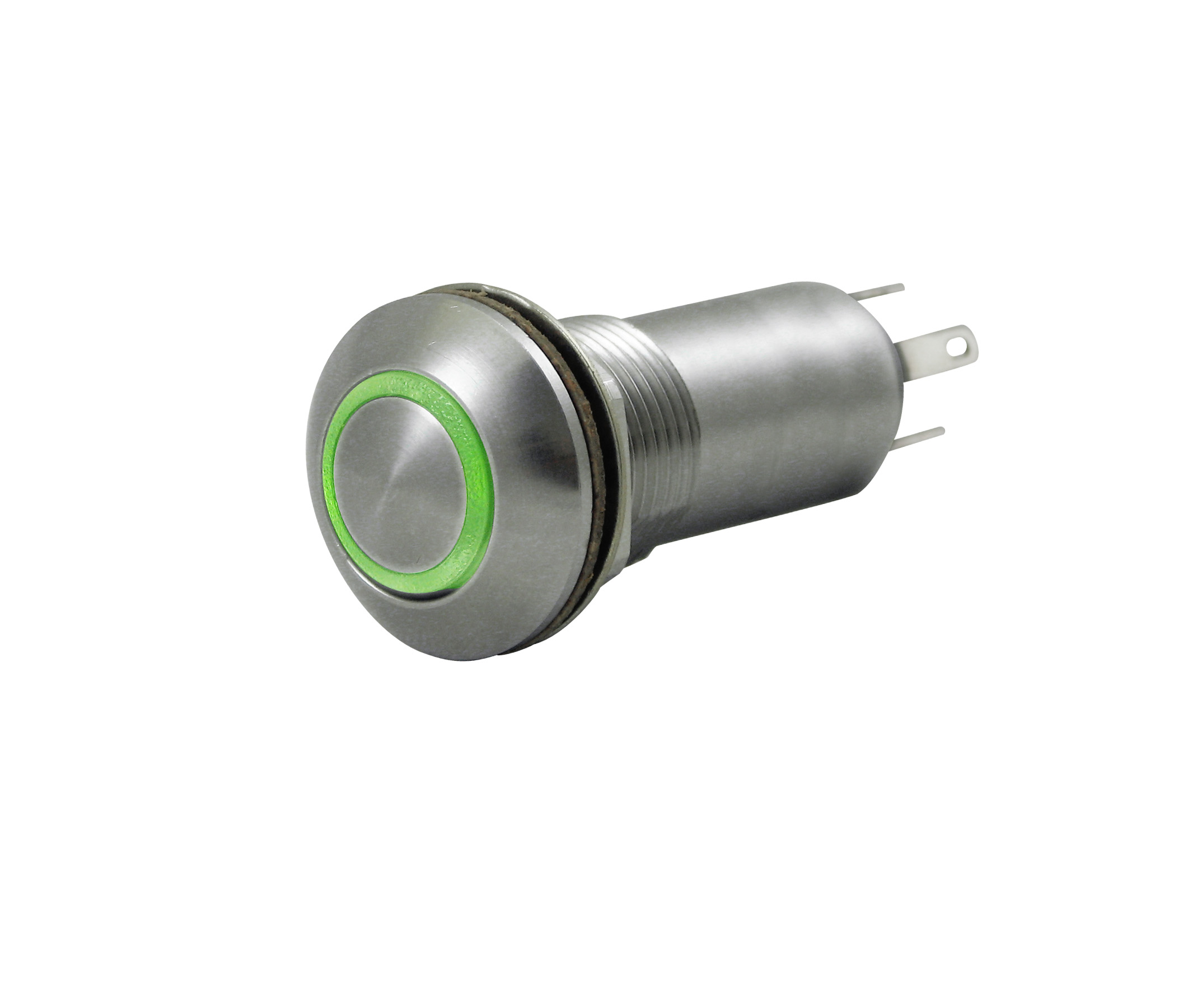

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11H3213
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Low Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.1 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V11H3213

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, the ultimate solution for demanding environments. Featuring a durable stainless steel construction with a sleek silver finish, this switch is built to last. With an IP6K8S rating, it offers reliable protection against dust and water ingress. The illuminated green button provides easy visibility, even in low light conditions. Operating at 115VAC or 28VDC, with a current rating of 5A, it is suitable for a wide range of applications. The momentary action switch has a SPST-NO contact configuration, ensuring precise and reliable operation. With a contact material of brass and silver plating, it guarantees excellent conductivity and longevity. Ideal for panel mounting, it is perfect for industrial and commercial use. Trust in the LP3-V Series for high-performance switching in any setting.
