LP3-V11K3215

OTTLP3_V11K3215
Heilind Number:OTTLP3-V11K3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11K3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

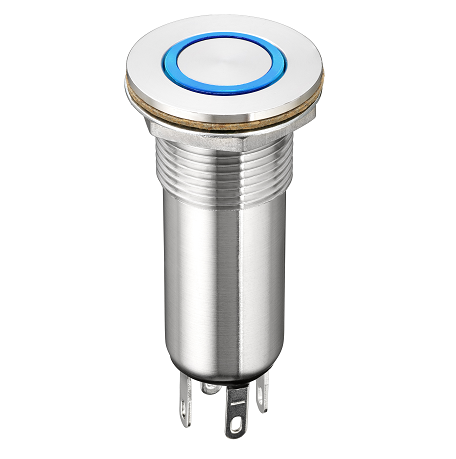

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11K3215
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Flush Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.05 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V11K3215

Detailed Description

Introducing the LP3-V11K3215, a sleek and durable pushbutton switch designed for high-performance applications. With a silver stainless steel housing and IP6K8S rating, this switch is not only vandal resistant but also sealed for reliable operation in harsh environments. The illuminated red button, featuring a flush profile flat actuator, provides clear visibility and user-friendly functionality. The SPST-NO contact configuration offers momentary action, making it perfect for controlling power or signal circuits. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of industrial and commercial settings. Its solder termination and panel mount design ensure easy installation. Tested for durability with a rating of 25,000 cycles, this pushbutton switch guarantees long-lasting performance even in the most demanding conditions. Upgrade your control panels with the LP3-V11K3215 and experience reliable operation like never before.
