LP3-V11L3215

OTTLP3_V11L3215
Heilind Number:OTTLP3-V11L3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11L3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

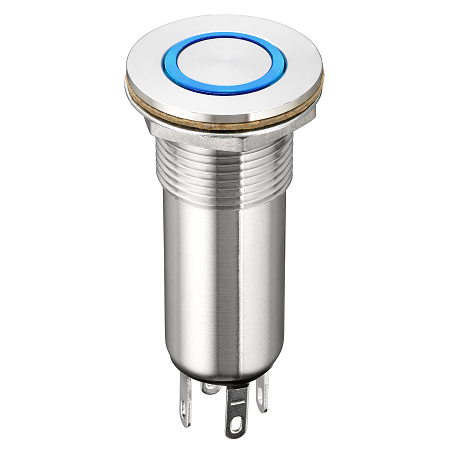

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11L3215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP3-V11L3215

Detailed Description

The LP3-V11L3215 is a rugged and reliable pushbutton switch designed for demanding environments. Featuring a durable stainless steel housing and a vandal-resistant design, this switch is perfect for applications where durability is key. With a sleek silver finish and green illuminated button, it not only offers high visibility but also adds a touch of style to any panel. The momentary action, Off-(On) switch function is ideal for applications requiring quick and easy activation. With a high IP6K8S rating, it is fully sealed against dust and water ingress, making it suitable for use in harsh industrial settings. The SPST-NO contact configuration ensures reliable performance, while the 5A current rating and 115VAC/28VDC voltage ratings make it versatile for a wide range of applications. With a long 25,000 cycle durability rating and an operating temperature range of -55°C to 85°C, this switch is built to last. Perfect for use in control panels, machinery, and other industrial equipment, the LP3-V11L3215 is a top choice for engineers and designers who require a high-quality pushbutton switch.
