LP3-V11M3215

OTTLP3_V11M3215
Heilind Number:OTTLP3-V11M3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11M3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

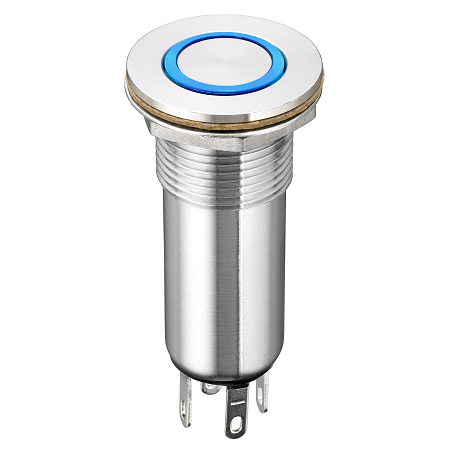

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11M3215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
SKU:OTTLP3-V11M3215

Detailed Description

Introducing the LP3-V11M3215, a rugged and reliable pushbutton switch designed for demanding applications. With its stainless steel construction and IP6K8S sealing, this switch is built to withstand harsh environments and heavy use. The illuminated button, with a vibrant amber color, provides clear indication of operation. The momentary action and SPST-NO contact configuration offer precise control, while the 5A current rating ensures efficient power handling. Panel mountable and terminated with solder, installation is a breeze. Whether you need a durable switch for industrial machinery or outdoor equipment, the LP3-V11M3215 is the perfect choice. With a durability rating of 25,000 cycles and a wide operating temperature range from -55°C to 85°C, this switch guarantees long-lasting performance in any conditions. Upgrade your system with this high-quality, vandal-resistant pushbutton switch.
