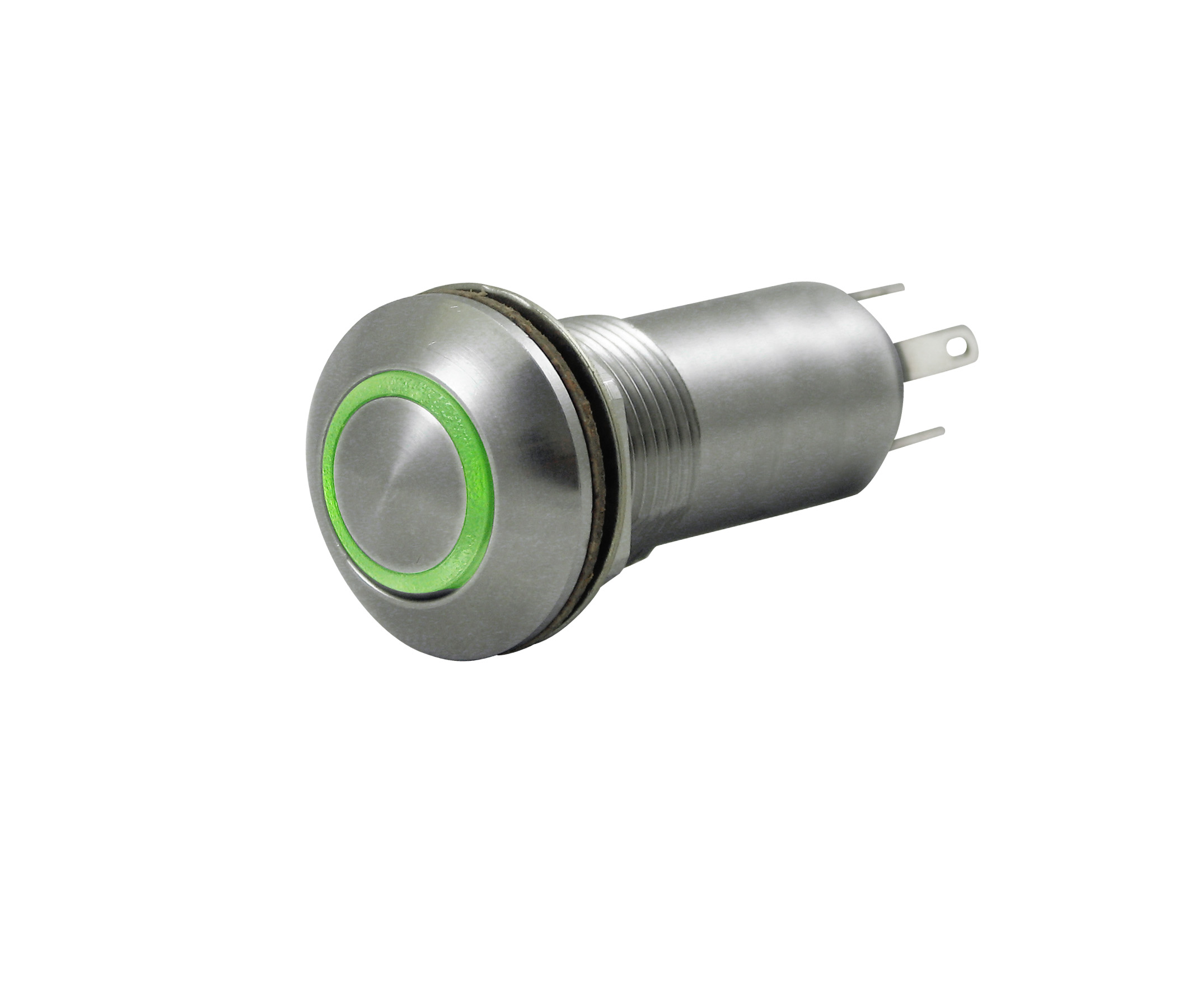

LP3-V11N3513

OTTLP3_V11N3513
Heilind Number:OTTLP3-V11N3513
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11N3513
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11N3513
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP3-V11N3513

Detailed Description

Introducing the LP3-V11N3513, a high-performance pushbutton switch designed for durability and reliability in demanding environments. Featuring a sleek silver housing and matching button, this switch not only looks stylish but also offers IP6K8S sealing for protection against water and dust ingress. The blue illuminated button provides visual feedback, while the momentary action ensures quick and responsive operation. With a stainless steel construction and silver contact plating, this switch is built to last, with a durability rating of 25,000 cycles. Suitable for panel mounting with solder termination, it offers a contact configuration of SPST-NO and a current rating of 5A at both 115VAC and 28VDC. Operating temperature ranges from -55°C to 85°C, making it ideal for a wide range of applications. Upgrade to the LP3-V11N3513 for a vandal-resistant, sealed, and illuminated pushbutton switch that delivers performance and longevity.
