LP3-V11Q3215

Heilind Number:OTTLP3-V11Q3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11Q3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

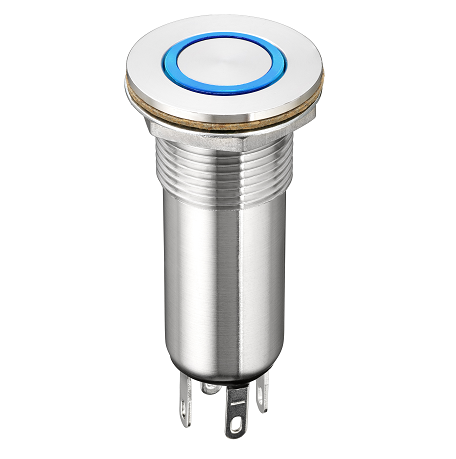

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11Q3215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-V11Q3215

Detailed Description

Introducing the LP3-V11Q3215, a durable and reliable pushbutton switch designed for demanding environments. With a sleek stainless steel housing and silver cap and case colors, this switch not only looks professional but also offers robust protection against vandalism and the elements with an IP6K8S rating. The momentary action, illuminated design features a blue LED for easy visibility, while the flush profile flat button ensures smooth operation. Ideal for panel mounting, the LP3-V11Q3215 is suitable for a wide range of applications, with a 5A current rating and SPST-NO contact configuration. Backed by a 25,000 cycle durability rating and operating temperatures ranging from -55°C to 85°C, this switch guarantees long-lasting performance in any setting. Upgrade your control systems with the LP3-V11Q3215 and experience reliable operation like never before.
