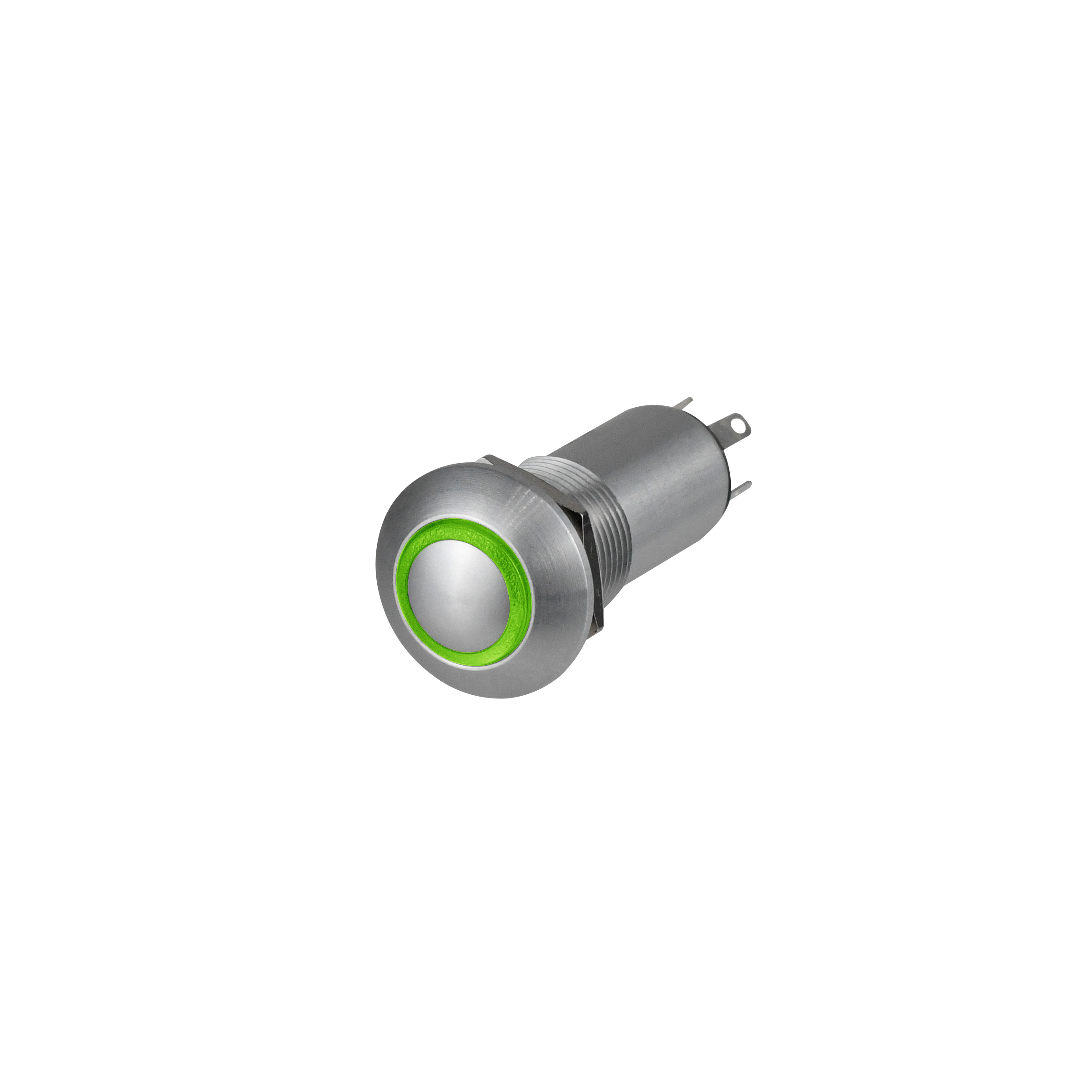

LP3-V11Q3512

OTTLP3_V11Q3512
Heilind Number:OTTLP3-V11Q3512
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11Q3512
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11Q3512
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.22 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-V11Q3512

Detailed Description

Introducing the LP3-V Stainless Steel Vandal Resistant Pushbutton Switch with Sealed and Illuminated features. Designed for durability with a rating of 25,000 cycles, this switch is ideal for high-use environments. The high-profile curved button actuator, made of stainless steel, provides a comfortable and ergonomic experience. With a silver casing and cap, it offers a sleek and modern look. The blue illumination with a voltage of 12V adds a touch of style while ensuring visibility in low-light conditions. Operating at temperatures ranging from -55°C to 85°C, it is suitable for a wide range of applications. The SPST-NO contact configuration and Off-(On) switch function make it versatile for various setups. Panel mount installation and solder termination type provide easy and secure mounting. Rated for 5A at 115VAC and 28VDC, it offers reliable performance. Perfect for industrial, automotive, and marine use, this pushbutton switch ( LP3-V11Q3512) is a must-have for any project requiring a durable and functional control solution.
