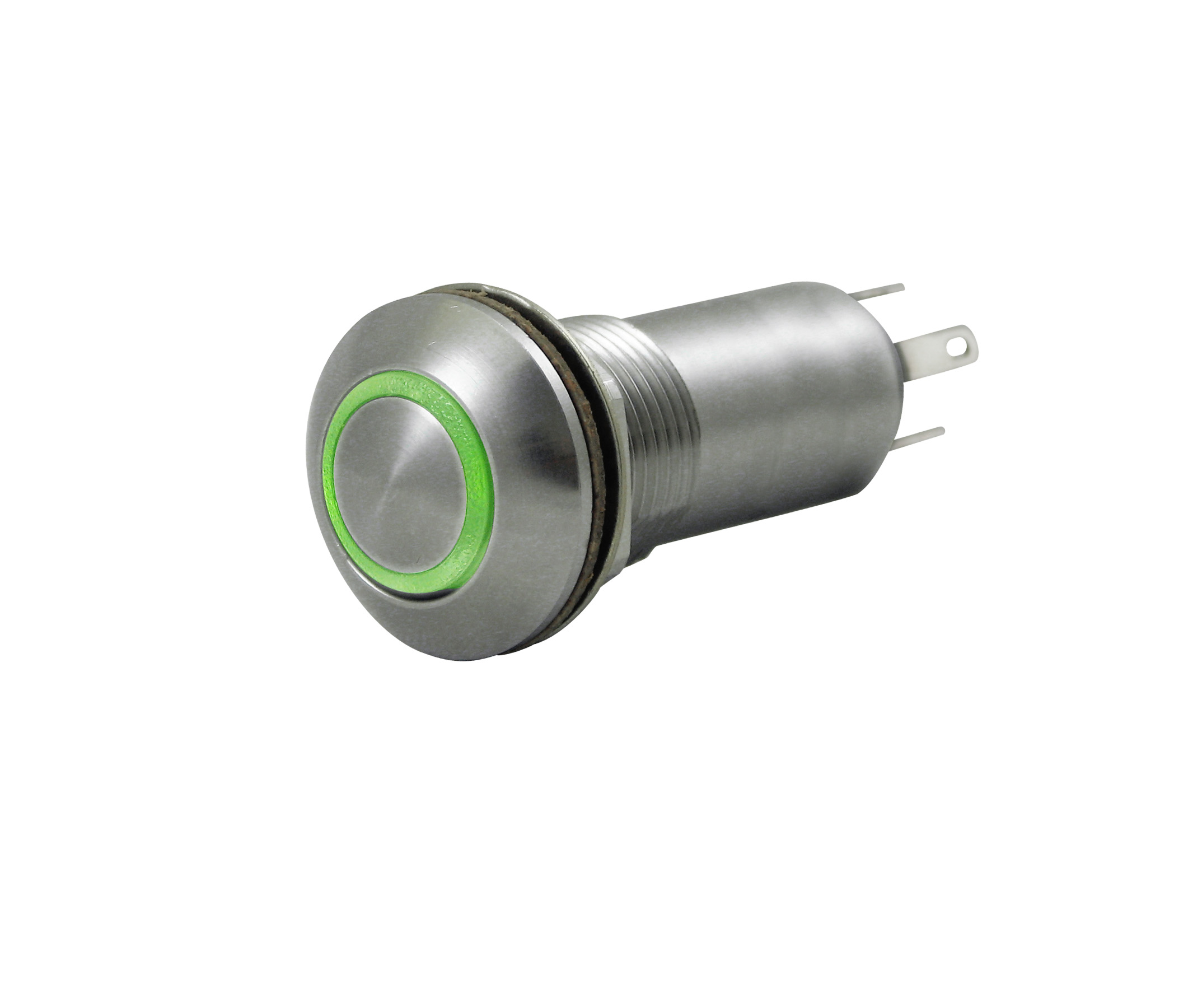

LP3-V13A2213

OTTLP3_V13A2213
Heilind Number:OTTLP3-V13A2213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V13A2213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V13A2213
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3-V13A2213

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, the ultimate solution for demanding environments. Designed for durability and reliability, this switch features a rugged stainless steel housing and a sealed construction for protection against dust and water. The low profile flat button actuator with a round shape provides a sleek and modern look, while the illuminated red LED offers enhanced visibility. With a momentary action and SPDT contact configuration, it is perfect for a wide range of applications. Rated for 25,000 cycles and with a wide operating temperature range from -55°C to 85°C, this switch is built to last. Suitable for both panel mount and solder termination, it offers easy installation. The LP3-V13A2213 is ideal for use in industrial, transportation, and outdoor settings where reliability is paramount.
