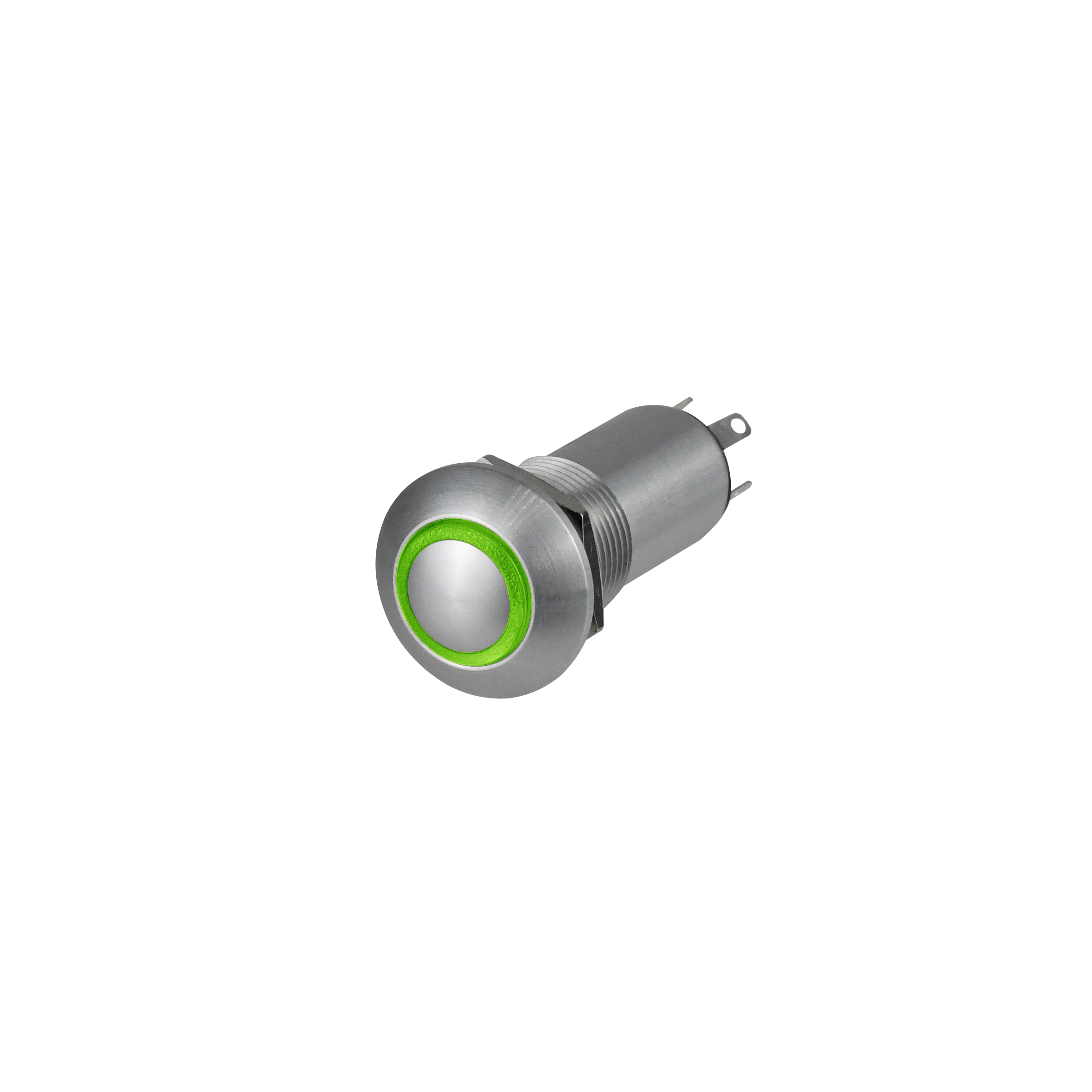

LP3-V13E3512

OTTLP3_V13E3512
Heilind Number:OTTLP3-V13E3512
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V13E3512
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V13E3512
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.22 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:6 V
SKU:OTTLP3-V13E3512

Detailed Description

The LP3-V Series Vandal Resistant Pushbutton Switch is a durable and reliable solution for industrial applications. Featuring a high profile curved button with a round shape, this switch is designed for easy actuation. The stainless steel housing and silver contact plating ensure long-lasting performance, even in harsh environments. With an IP6K8S rating, it is sealed against dust and water ingress. The illuminated green button provides clear indication of switch status, with a voltage rating of 6V for the LED. Operating at temperatures ranging from -55°C to 85°C, and with a durability rating of 25,000 cycles, this switch is built to withstand demanding conditions. Suitable for panel mounting, it offers SPDT contact configuration with a 5A current rating. Perfect for applications where reliability and durability are paramount, the LP3-V Series is a top choice in pushbutton switches.
