LP3-V13N3212

Heilind Number:OTTLP3-V13N3212
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V13N3212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V13N3212
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V13N3212

Detailed Description

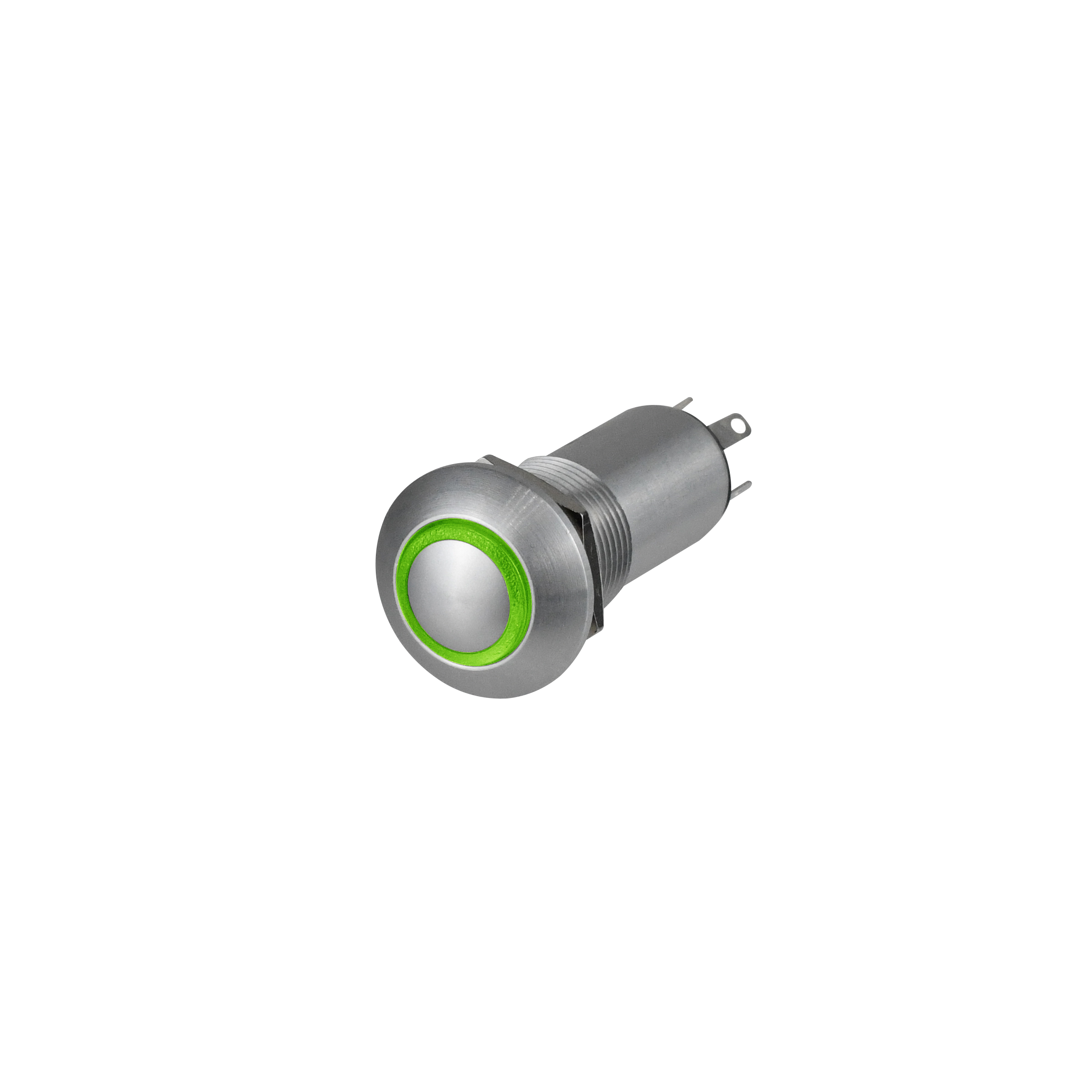

Introducing the LP3-V13N3212 Vandal Resistant, Sealed, Illuminated, Momentary Action Pushbutton Switch. Featuring a sleek stainless steel construction with a silver cap and case, this durable switch is designed for rugged environments. The high profile curved button with a round shape offers easy actuation, while the blue illumination adds a stylish touch. With an IP6K8S rating and sealed design, it ensures reliable performance even in harsh conditions. The SPDT contact configuration and 5A current rating make it suitable for a variety of applications. Whether used in industrial machinery or outdoor equipment, this pushbutton switch guarantees long-lasting operation with a durability rating of 25,000 cycles. Meeting stringent quality standards, it is ideal for use in demanding environments where reliability is paramount. Upgrade your control panel with the LP3-V13N3212 and experience superior performance.
