LP3-V14A3211

OTTLP3_V14A3211
Heilind Number:OTTLP3-V14A3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V14A3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

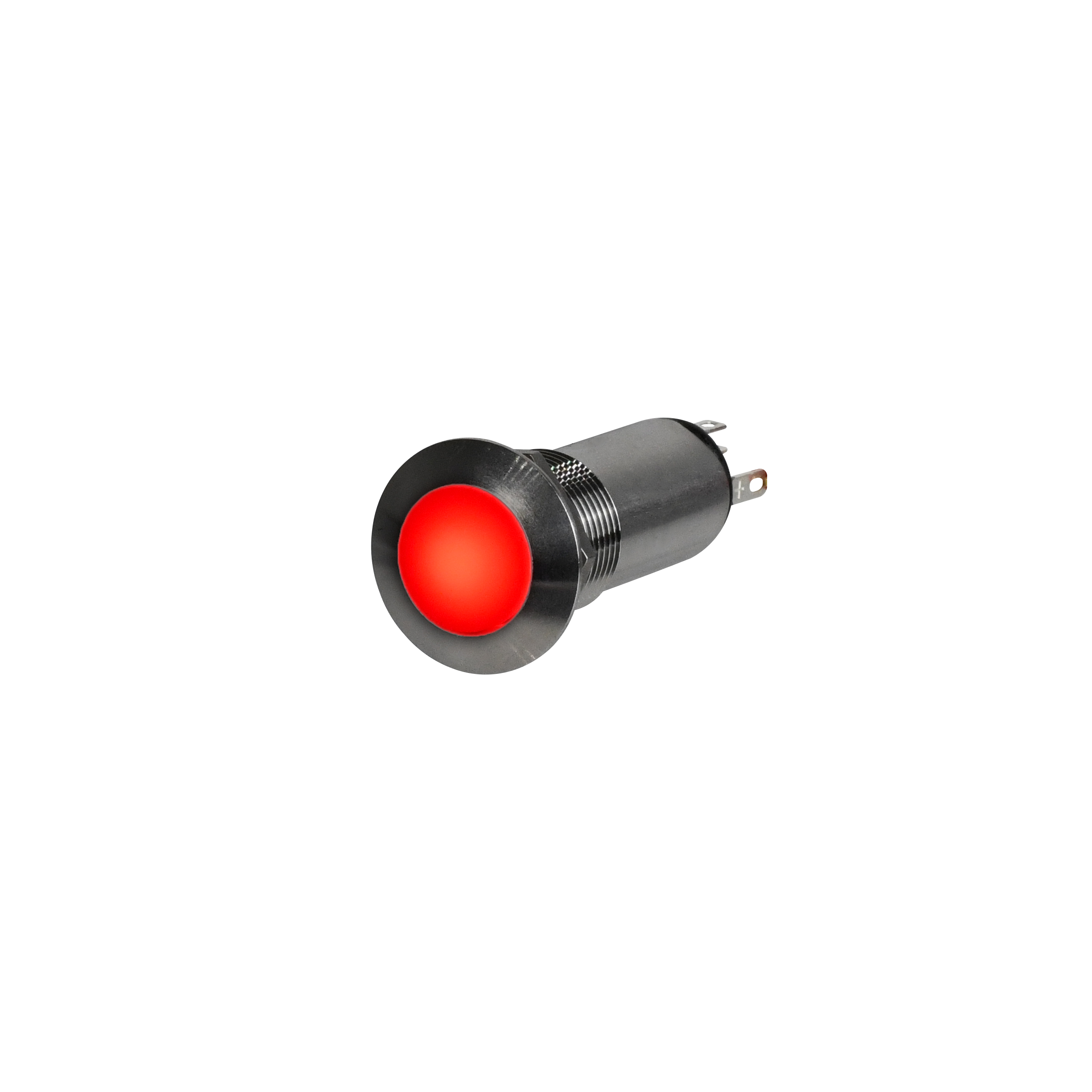

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V14A3211
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Flat)
Actuator Shape:Round
Current Rating:10 mA
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):200,000 Cycles
Voltage Rating (DC):5 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V14A3211

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, a durable and reliable solution for industrial and outdoor applications. Featuring a high profile flat button design and a rugged stainless steel construction with a sleek silver finish, this switch is built to withstand harsh environments. With an IP6K8S rating for water and dust resistance, it ensures reliable performance even in the toughest conditions. The illuminated red button provides clear visibility, while the momentary action and SPST-NO contact configuration offer precise control. Rated for 200,000 cycles of operation, it guarantees long-lasting durability. Ideal for panel mount installation, it has a solder termination type and operates at a voltage rating of 5VDC. Whether used in automotive, marine, or outdoor equipment, the LP3-V14A3211 is the perfect choice for demanding applications.
