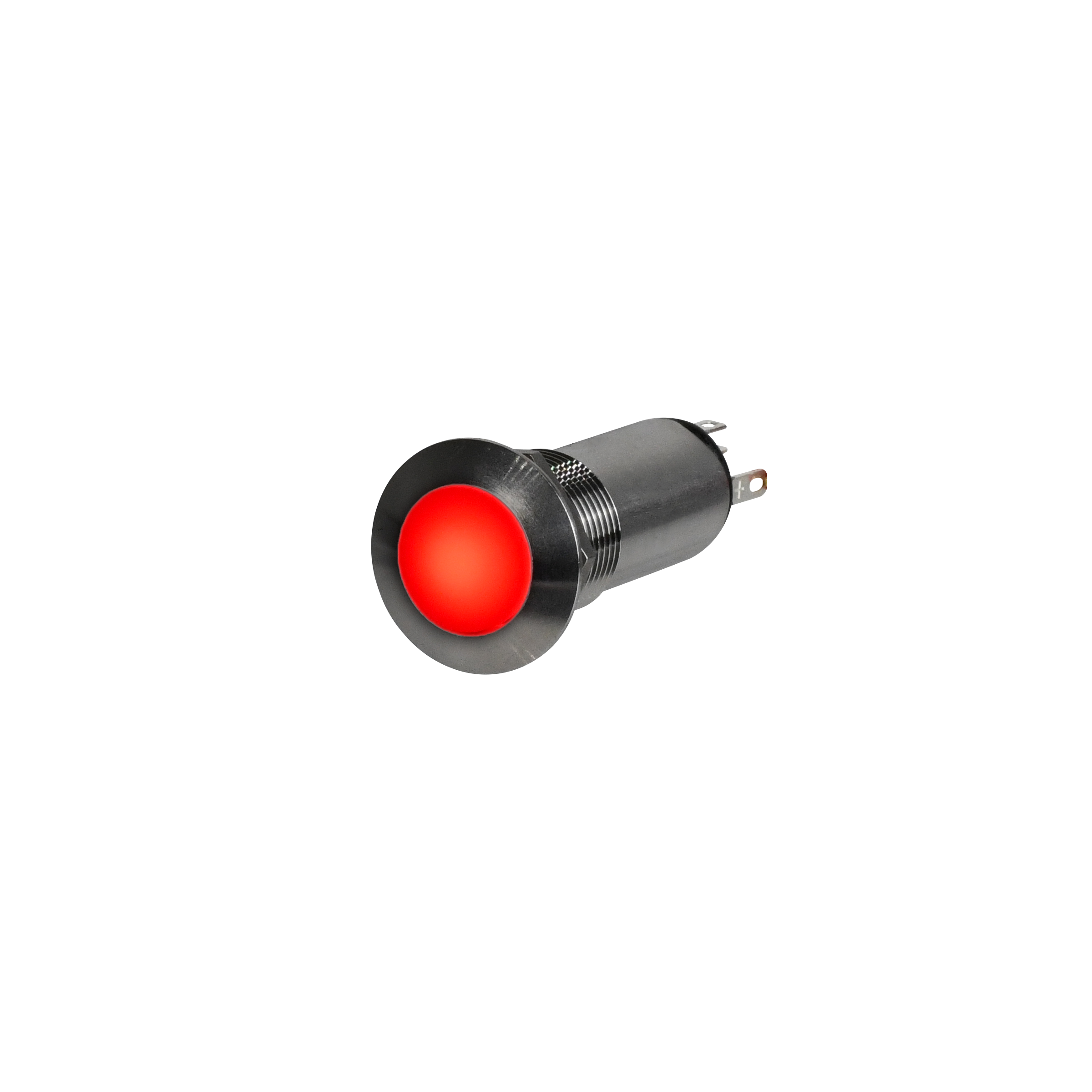

LP3-V14B3211

OTTLP3_V14B3211
Heilind Number:OTTLP3-V14B3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V14B3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V14B3211
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Flat)
Actuator Shape:Round
Current Rating:10 mA
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):200,000 Cycles
Voltage Rating (DC):5 VDC
Illumination Color:Green
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V14B3211

Detailed Description

The LP3-V series Vandal Resistant Pushbutton Switch is a durable and reliable solution for various industrial applications. Featuring a high-profile flat button actuator with a round shape, this switch is designed for easy operation. The stainless steel housing and sealed construction ensure protection against harsh environments, while the IP6K8S rating guarantees water and dust resistance. With a green illuminated button for clear visibility, the switch is perfect for low-light conditions. The SPST-NO contact configuration offers momentary action, making it ideal for control panel applications. With a 200,000 cycle durability rating and a wide operating temperature range of -55°C to 85°C, this switch is built to last. Suitable for panel mounting, it has a solder termination type and a voltage rating of 5VDC. Trust the LP3-V series for robust performance in demanding environments.
