LP3-V14P3211

OTTLP3_V14P3211
Heilind Number:OTTLP3-V14P3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V14P3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

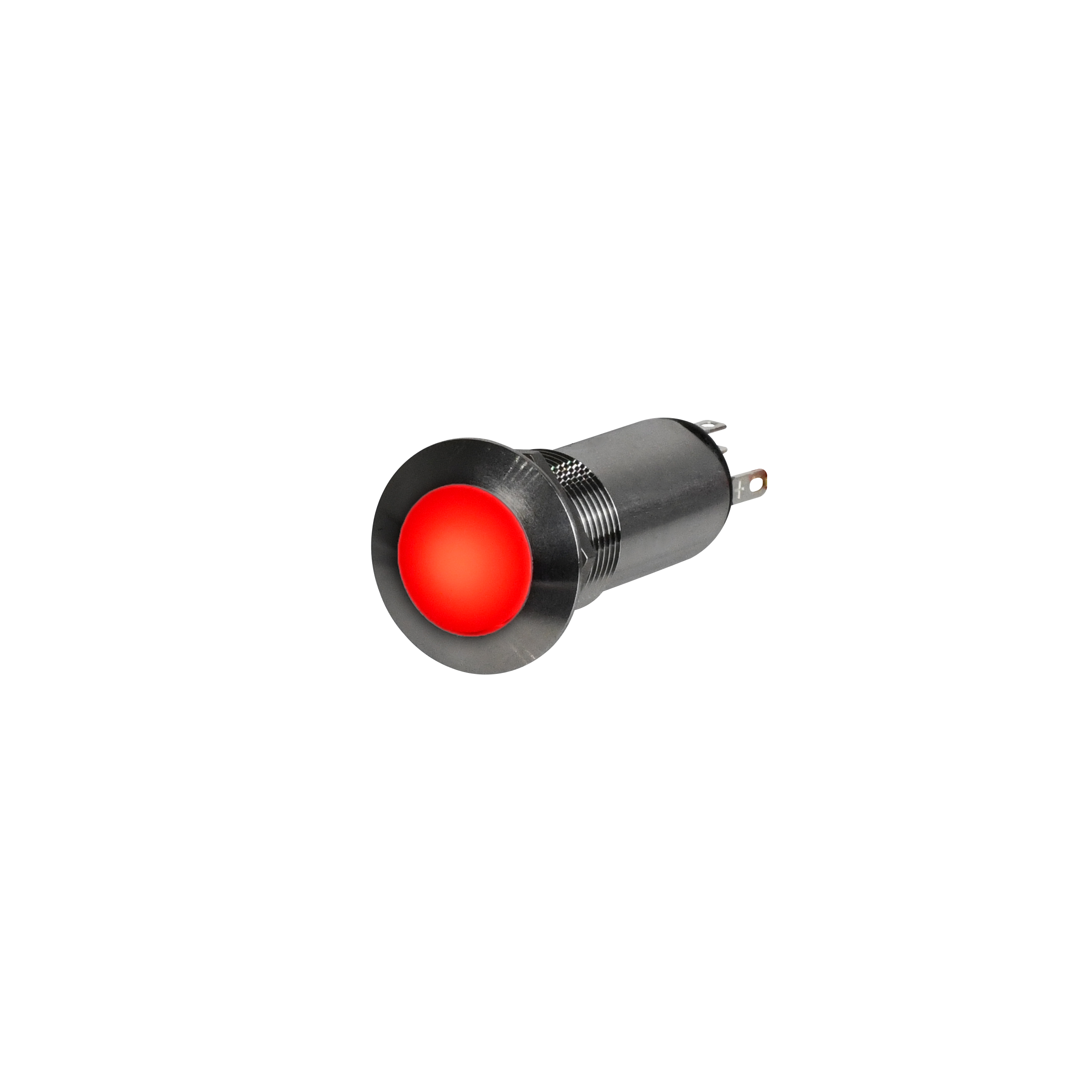

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V14P3211
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
Illumination Color:Blue
Illumination Voltage:6 V
SKU:OTTLP3-V14P3211

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, the ultimate solution for demanding environments. With a durable stainless steel housing and sealed construction, this switch is built to withstand even the harshest conditions. The high-profile flat button, featuring a round shape, is ideal for easy actuation. Illuminated with a vibrant blue LED, it offers clear visibility in dark settings. Operating on a low 5VDC voltage, it provides reliable performance with a long lifespan of 200,000 cycles. Perfect for panel mounting, it ensures secure installation. The SPST-NO contact configuration guarantees a reliable momentary action. With an IP6K8S rating, it is dust and water-resistant, making it suitable for outdoor and industrial applications. Upgrade to the LP3-V14P3211 for a premium pushbutton switch experience.
