LP3-V31L2212

OTTLP3_V31L2212
Heilind Number:OTTLP3-V31L2212
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V31L2212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

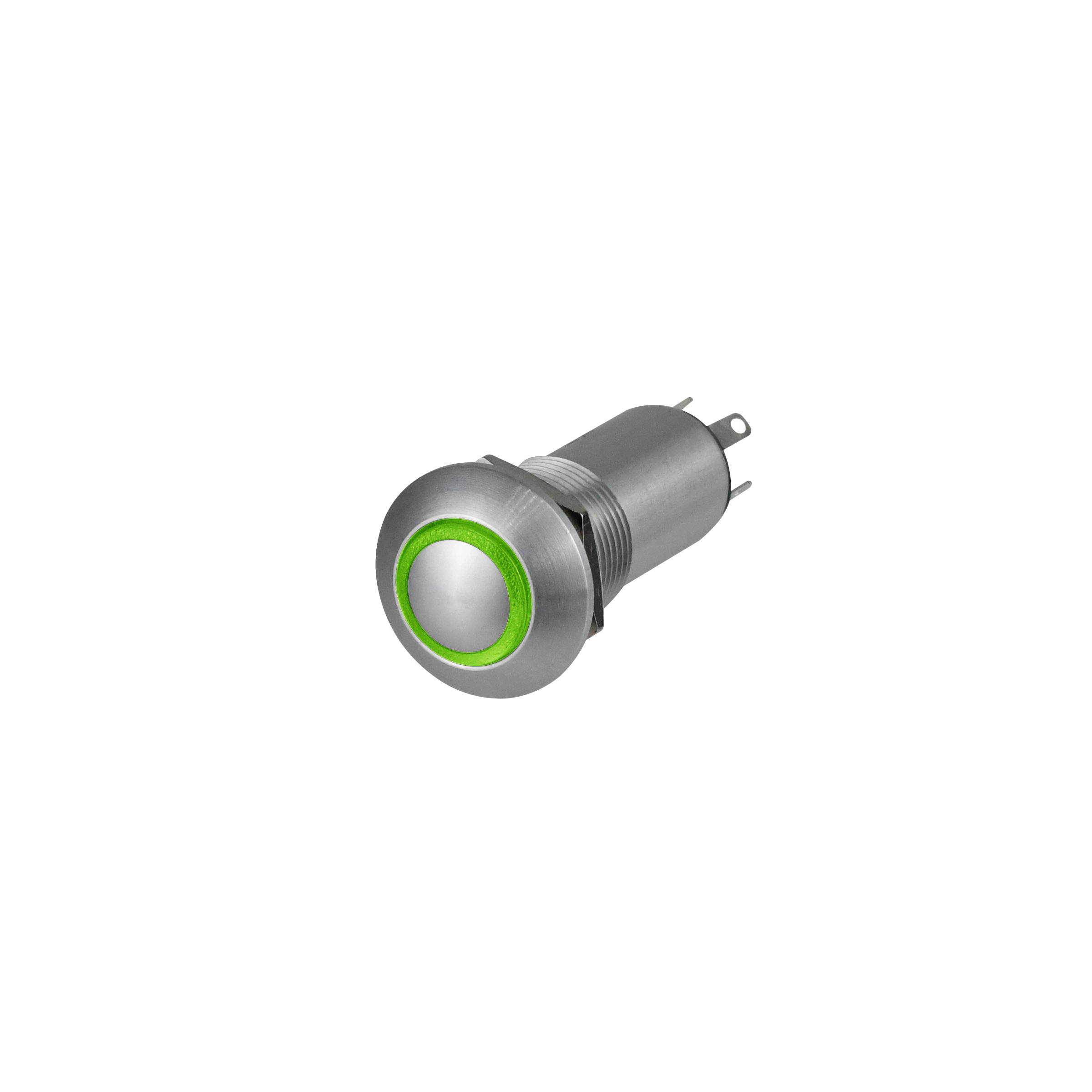

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V31L2212
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K4S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V31L2212

Detailed Description

The LP3-V31L2212 is a rugged and reliable pushbutton switch designed for demanding applications. Featuring a sleek silver housing and a high-profile curved button actuator, this switch is not only durable but also visually appealing. With an IP6K4S rating, it is resistant to dust and water ingress, making it suitable for outdoor and industrial settings. The illuminated green button provides clear indication of its status, while the momentary action ensures quick and responsive operation. Constructed with stainless steel materials and sealed for added protection, this switch guarantees long-lasting performance even in harsh environments. Perfect for panel mounting, it offers easy installation and a secure fit. With a maximum voltage rating of 115 VAC and 28 VDC, it is suitable for a wide range of power applications. Trust in the LP3-V31L2212 for high-quality, reliable switching in any situation.
