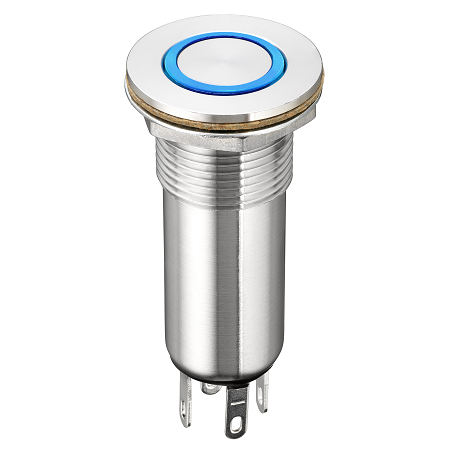

LP3-V31Q2215

OTTLP3_V31Q2215
Heilind Number:OTTLP3-V31Q2215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V31Q2215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V31Q2215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-V31Q2215

Detailed Description

Introducing the LP3-V31Q2215, a high-performance pushbutton switch designed for durability and reliability in demanding environments. Featuring a rugged stainless steel housing and a vandal-resistant design, this switch is built to withstand extreme conditions. The sealed construction and IP6K4S rating ensure protection against dust and water ingress, making it ideal for outdoor or industrial applications. With a sleek silver case and illuminated blue button, it not only looks great but also provides visual feedback. The momentary action, SPST-NO contact configuration, and 5A current rating make it suitable for a variety of low voltage AC and DC applications. Whether you need a dependable switch for your machinery, vehicle, or control panel, the LP3-V31Q2215 delivers performance you can rely on.
