LP3-V34H3215

OTTLP3_V34H3215
Heilind Number:OTTLP3-V34H3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V34H3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

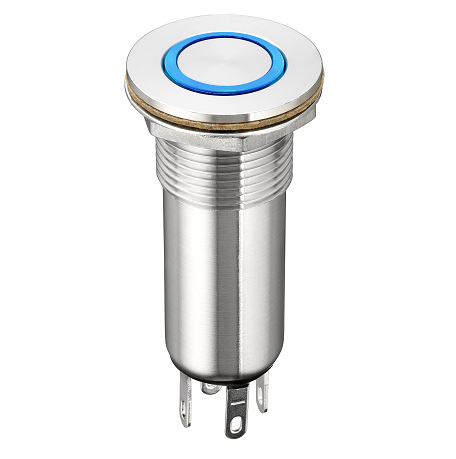

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V34H3215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3-V34H3215

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, featuring a sleek silver housing and a durable stainless steel construction. This sealed switch offers reliable performance in harsh environments, with an IP6K8S rating for dust and water resistance. The illuminated green button provides enhanced visibility, with a 12V illumination voltage. Operating at a voltage of 5VDC and a current rating of 10mA, this SPST-NO switch is ideal for a variety of applications. With a momentary action and a contact configuration of SPST-NO, it ensures precise control. The Gold contact plating and brass contact material guarantee long-lasting durability, with a rating of 200,000 cycles. Suitable for panel mounting, this switch is perfect for industrial and commercial use. Experience the quality and reliability of the LP3-V34H3215.
