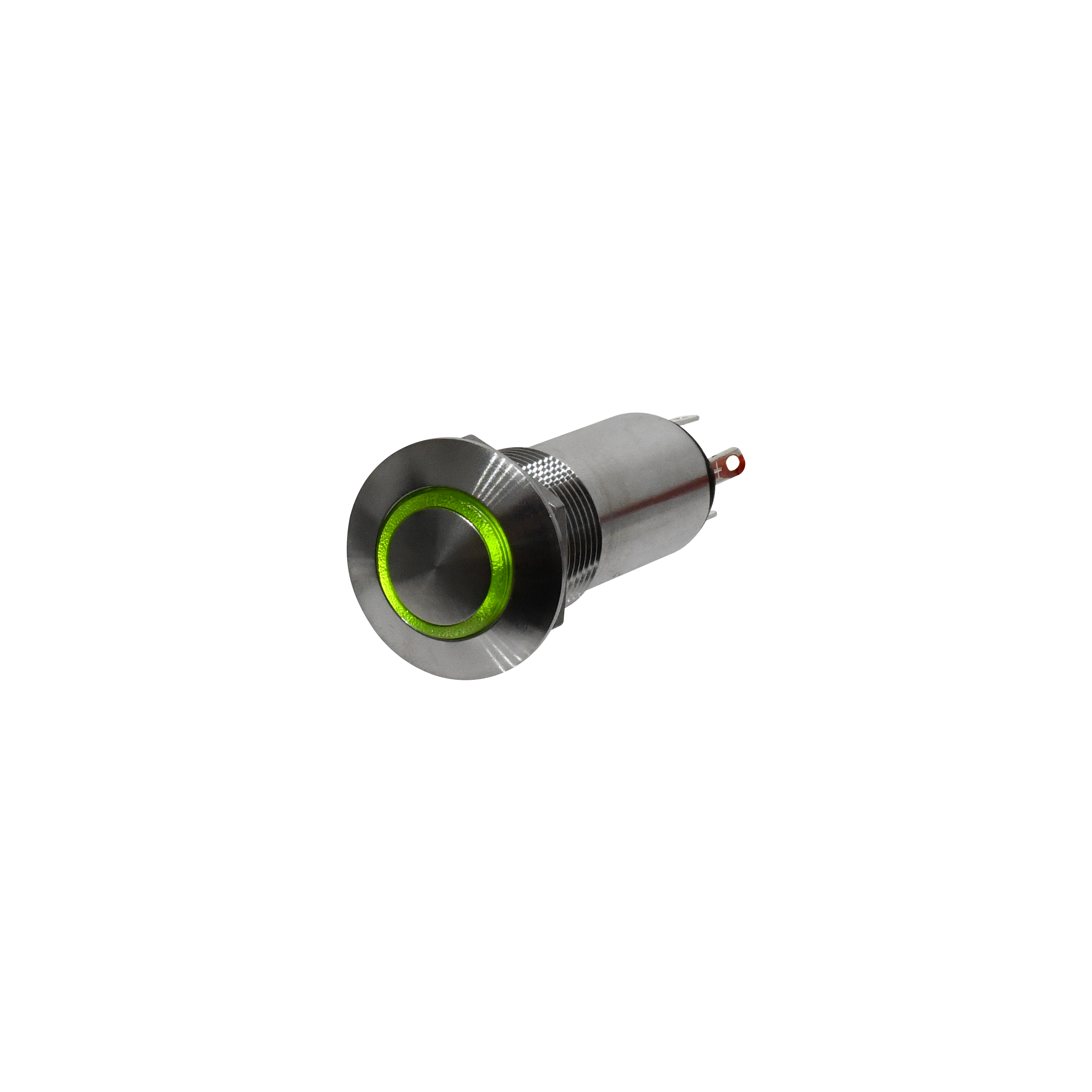

LP3-V36Q3233

OTTLP3_V36Q3233
Heilind Number:OTTLP3-V36Q3233
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V36Q3233
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V36Q3233
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Translucent
Actuator Length:.1 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-V36Q3233

Detailed Description

Introducing the LP3-V36Q3233, a rugged and versatile pushbutton switch designed for demanding environments. With a durable stainless steel housing and a translucent illuminated cap in striking blue, this switch not only offers high visibility but also boasts an IP6K8S rating for superior protection against dust and water ingress. The low profile flat button actuator, made of thermoplastic, ensures comfortable operation while maintaining a sleek appearance. Featuring a momentary action with SPDT contact configuration, it is perfect for applications requiring reliable and precise control. With gold-plated brass contacts and a 200,000 cycle durability rating, this switch guarantees long-lasting performance even in harsh conditions. Suitable for panel mounting with solder termination, it is easy to install and offers a secure connection. Rated for 5VDC and 10mA, with an illumination voltage of 12V, it is ideal for use in a wide range of electronic devices. From industrial machinery to automotive controls, the LP3-V36Q3233 is the perfect choice for high-quality, vandal-resistant, and sealed pushbutton switching.
