LP3-V51A3214

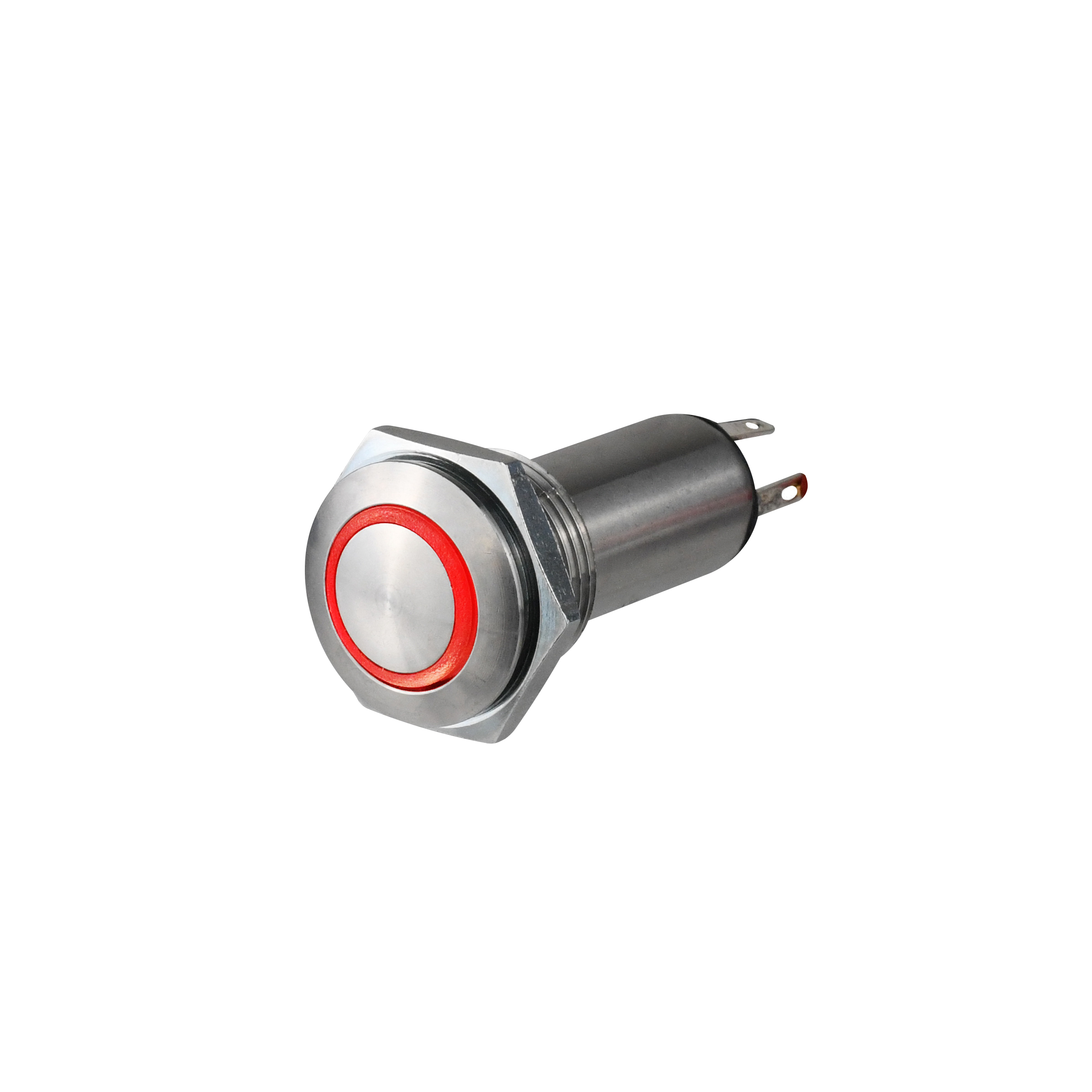

OTTLP3_V51A3214
Heilind Number:OTTLP3-V51A3214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V51A3214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V51A3214
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3-V51A3214

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, the ultimate solution for demanding industrial environments. Designed for durability and reliability, this switch features a Stainless Steel housing and a sealed construction to withstand harsh conditions. The low profile curved button, with a red illuminated ring around it, offers a sleek and modern look while providing easy actuation. With a momentary action, SPST-NO contact configuration, and a high current rating of 5A, this switch is ideal for power control applications. Its IP6K8S rating ensures protection against dust and water ingress, while the wide operating temperature range of -55°C to 85°C makes it suitable for use in extreme temperatures. Perfect for panel mount installations, this switch is a must-have for any industrial or commercial setting where reliability is paramount.
