LP3-V51K2215

OTTLP3_V51K2215
Heilind Number:OTTLP3-V51K2215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V51K2215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

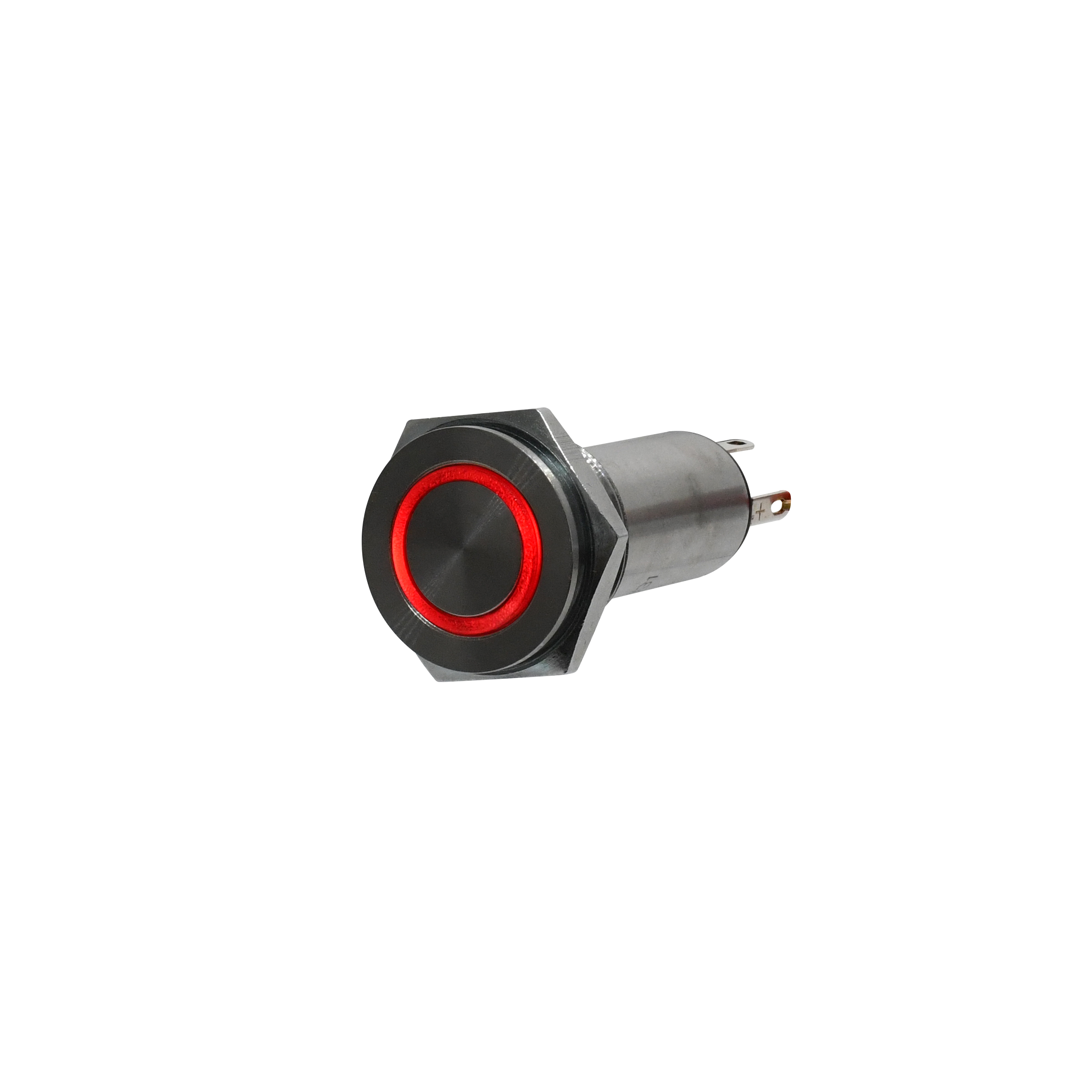

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V51K2215
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-V51K2215

Detailed Description

The LP3-V Series Vandal Resistant Pushbutton Switch is a durable and reliable solution for industrial applications. Featuring a sleek silver design with an IP6K4S rating for dust and water resistance, this switch is built to withstand harsh environments. The illuminated red button, made of stainless steel, provides visual feedback and enhances user experience. With a high current rating of 5A and a contact configuration of SPST-NO, it ensures efficient electrical performance. The momentary action switch has a long lifespan of 25,000 cycles, making it ideal for heavy-duty use. Panel mountable and suitable for both AC and DC voltages, it offers versatility in installation. The LP3-V51K2215 is a top choice for demanding applications that require a rugged and high-performance pushbutton switch.
