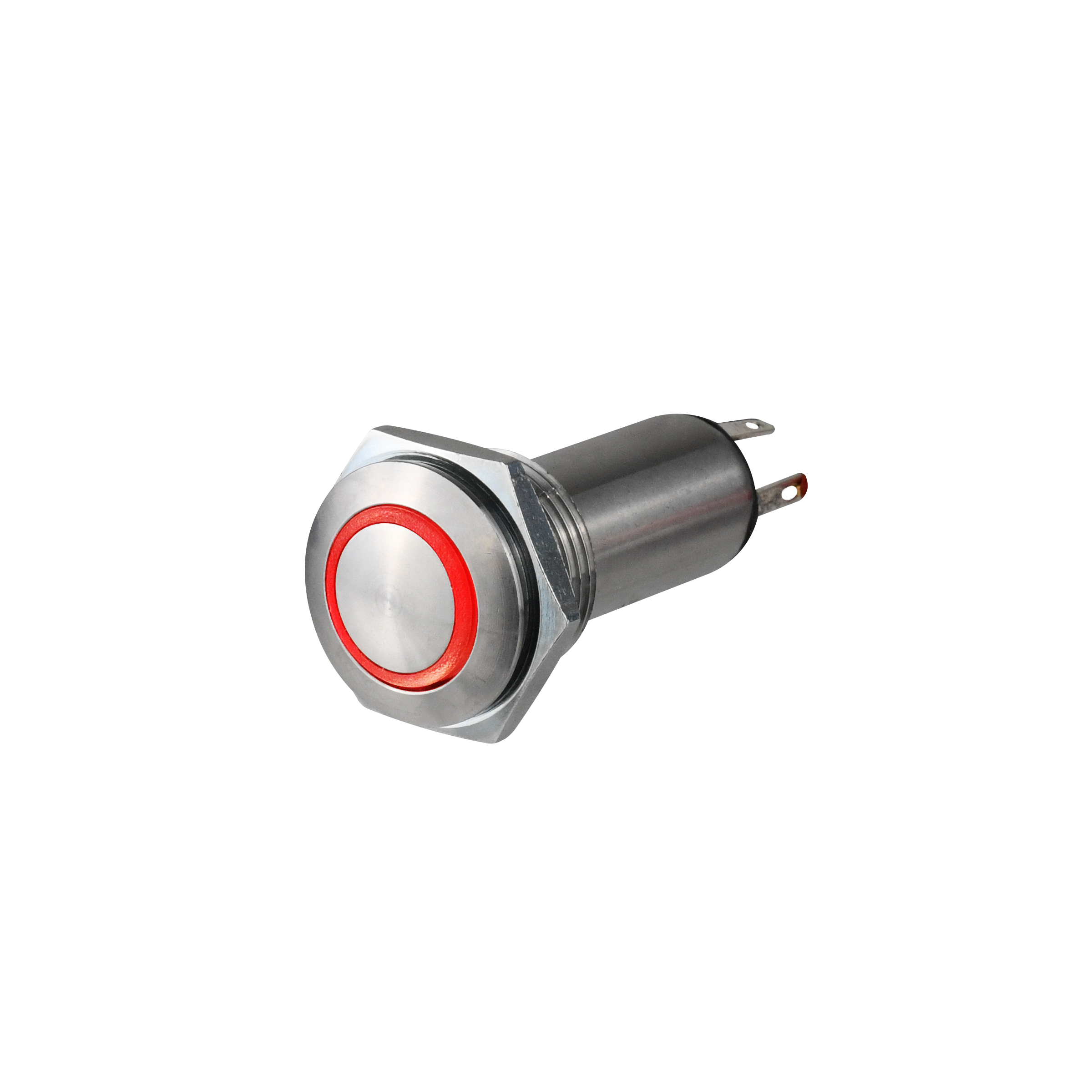

LP3-V51L3214

OTTLP3_V51L3214
Heilind Number:OTTLP3-V51L3214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V51L3214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V51L3214
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP3-V51L3214

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, a rugged and reliable solution for demanding environments. Featuring a sleek silver design with an IP6K8S rating, this switch is built to withstand water, dust, and impact. The low profile curved button, made of stainless steel, provides a comfortable and durable actuation experience. With its illuminated green indicator and momentary action, it offers clear and immediate feedback. The SPST-NO contact configuration ensures reliable performance, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a variety of applications. Whether used in industrial machinery, transportation systems, or outdoor equipment, this sealed pushbutton switch delivers long-lasting quality and performance. With a durability rating of 25,000 cycles and an operating temperature range from -55°C to 85°C, it is a dependable choice for any project. Upgrade to the LP3-V51L3214 and experience the ultimate in vandal-resistant, sealed, and illuminated pushbutton technology.
