LP3-V51N3213

OTTLP3_V51N3213
Heilind Number:OTTLP3-V51N3213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V51N3213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

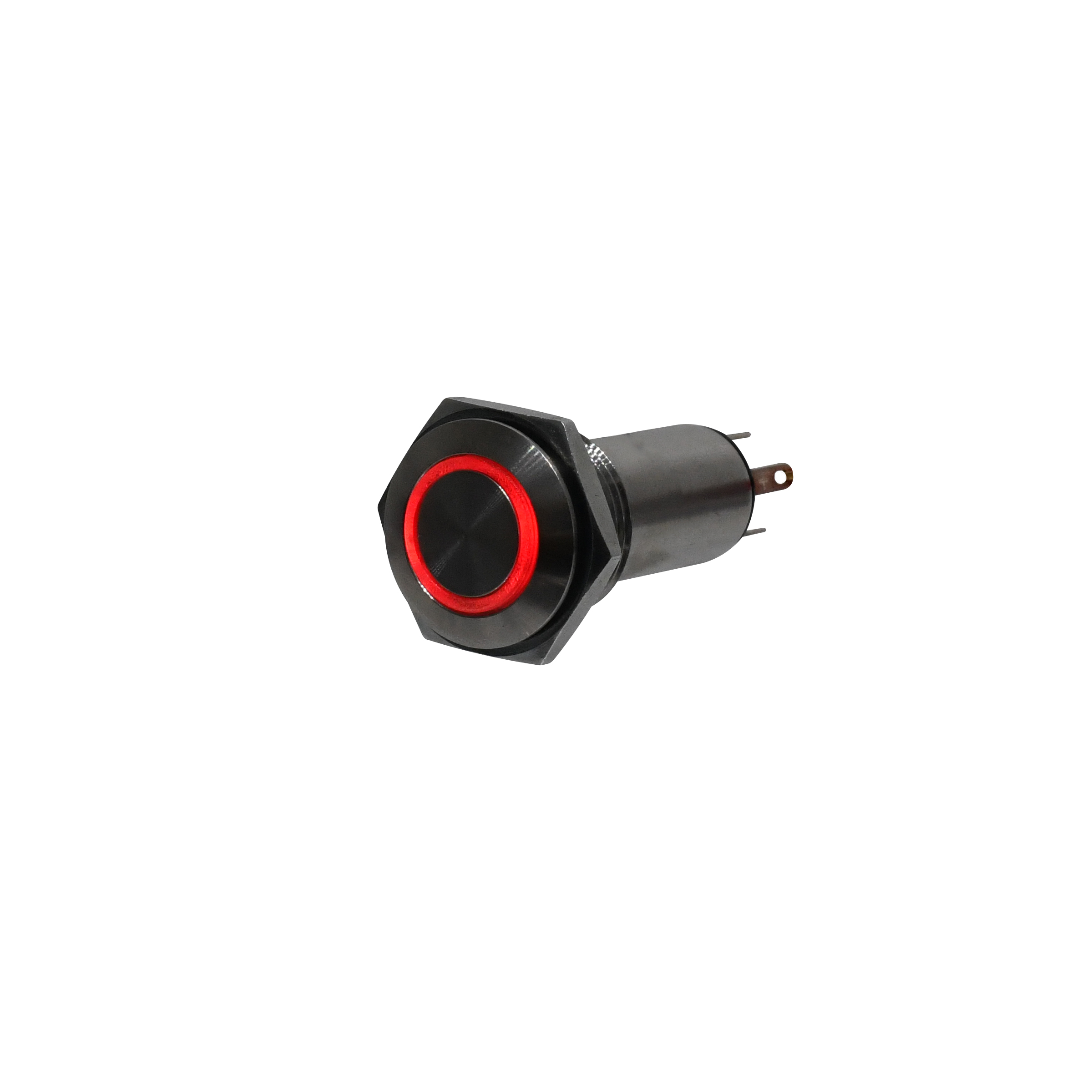

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V51N3213
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP3-V51N3213

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, a durable and reliable solution for demanding environments. Featuring a sleek stainless steel housing and a low profile flat button actuator with a round shape, this switch is designed for panel mounting applications. With an IP6K8S rating, it offers high resistance to dust and water ingress. The illuminated blue button provides visual feedback, while the momentary action SPST-NO contact configuration ensures quick and efficient operation. Rated for 5A at 115VAC and 28VDC, this switch is suitable for a wide range of industrial and commercial applications. With a durability rating of 25,000 cycles and an operating temperature range of -55°C to 85°C, it guarantees long-lasting performance even in harsh conditions. The LP3-V Series is the perfect choice for those seeking a high-quality, sealed, and illuminated pushbutton switch.
