LP3-V51N3214

OTTLP3_V51N3214
Heilind Number:OTTLP3-V51N3214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V51N3214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

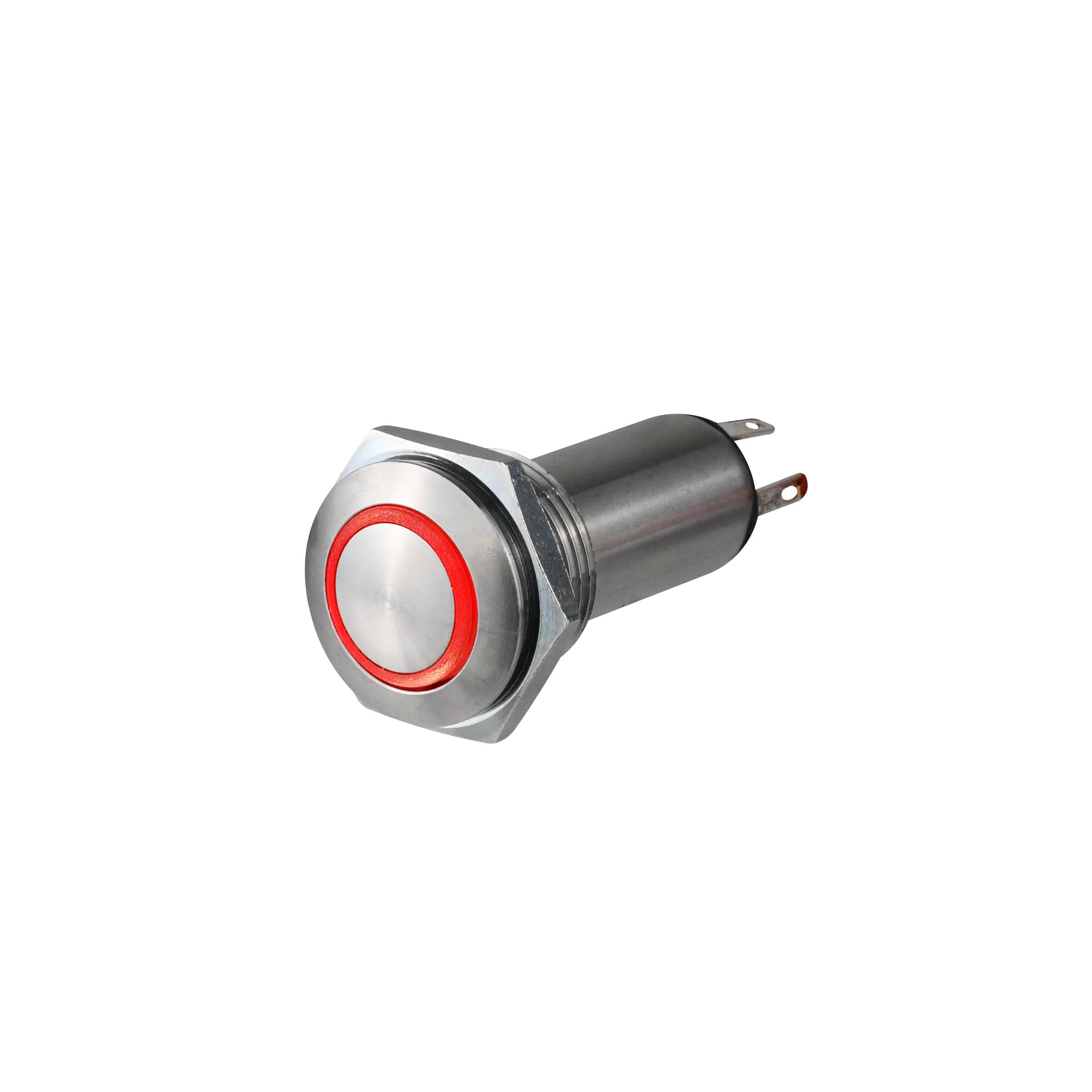

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V51N3214
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP3-V51N3214

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, designed for demanding environments requiring reliable performance. Featuring a sleek Silver housing and illuminated with a vibrant Blue LED, this switch is not only durable but also visually appealing. The momentary action, Off-(On) switch function is ideal for applications where quick and precise control is essential. With a high IP6K8S rating for dust and water resistance, along with a durable Stainless Steel construction, this switch is built to withstand harsh conditions. The SPST-NO contact configuration ensures efficient electrical connectivity, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of power requirements. Whether used in industrial machinery, transportation systems, or outdoor equipment, the LP3-V Series pushbutton switch delivers exceptional performance and longevity.
