LP3-V53B2215

OTTLP3_V53B2215
Heilind Number:OTTLP3-V53B2215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V53B2215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

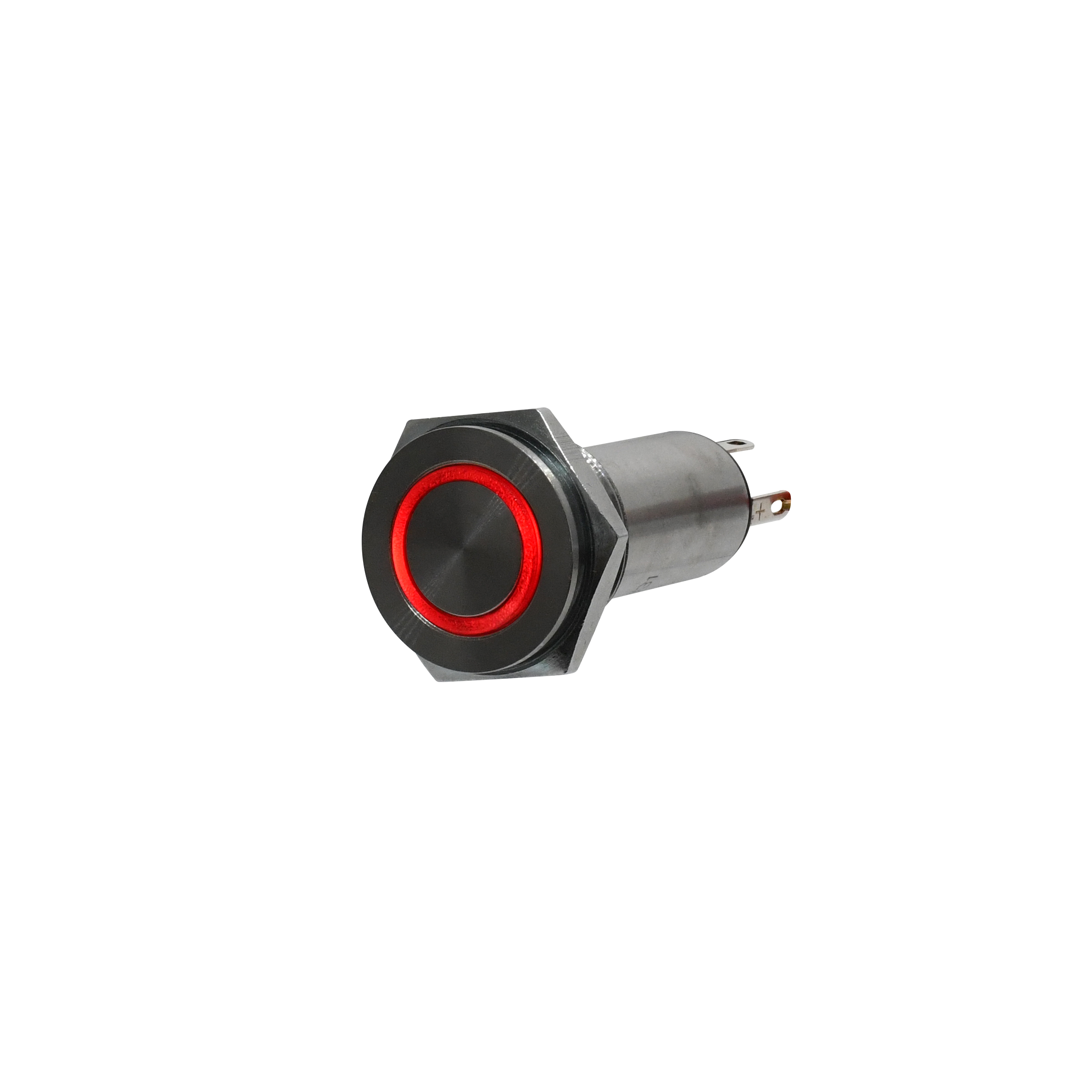

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V53B2215
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K4S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Flush Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.05 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V53B2215

Detailed Description

Meet the LP3-V Series Vandal Resistant Pushbutton Switch, designed for durability and reliability in demanding environments. Featuring a sleek silver housing and cap, this switch is not only aesthetically pleasing but also IP6K4S rated for protection against dust and water ingress. The illuminated green button with a flush profile and flat actuator offers easy visibility and operation. With a 5A current rating, SPDT contact configuration, and a contact material of brass with silver plating, this switch guarantees optimal performance. Suitable for panel mounting with solder termination, it is perfect for a wide range of applications. Operating between -55°C to 85°C and rated for 25,000 cycles, this switch is built to last. Whether it's for industrial machinery, automotive, or marine use, the LP3-V is the ideal choice for high-reliability switching.
