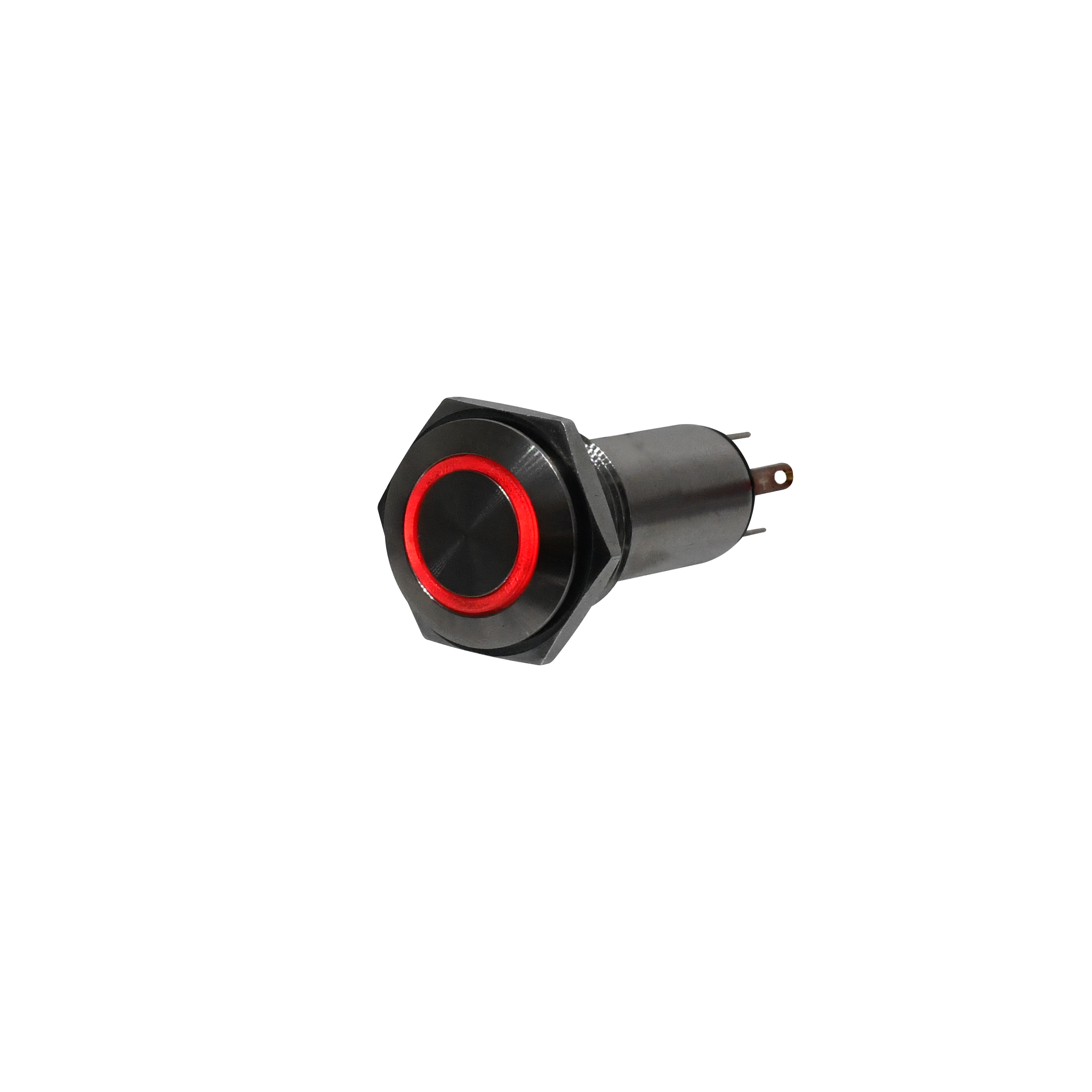

LP3-V54N2213

OTTLP3_V54N2213
Heilind Number:OTTLP3-V54N2213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V54N2213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V54N2213
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP3-V54N2213

Detailed Description

The LP3-V54N2213 is a vandal-resistant, sealed, illuminated pushbutton switch designed for reliable performance in demanding environments. Featuring a low profile flat button actuator and a durable stainless steel construction, this switch is perfect for applications requiring a high level of durability. With a blue LED illumination and momentary action switch function, it offers both visual and tactile feedback. The SPST-NO contact configuration and gold-plated brass contacts ensure a reliable electrical connection. Rated for 200,000 cycles of operation, this switch is built to last. Suitable for panel mount installation, it is ideal for use in industrial control panels, security systems, and other high-stress applications. With a wide operating temperature range of -55°C to 85°C and IP6K4S ingress protection rating, it can withstand harsh conditions with ease. Trust the LP3-V54N2213 for your critical switching needs.
