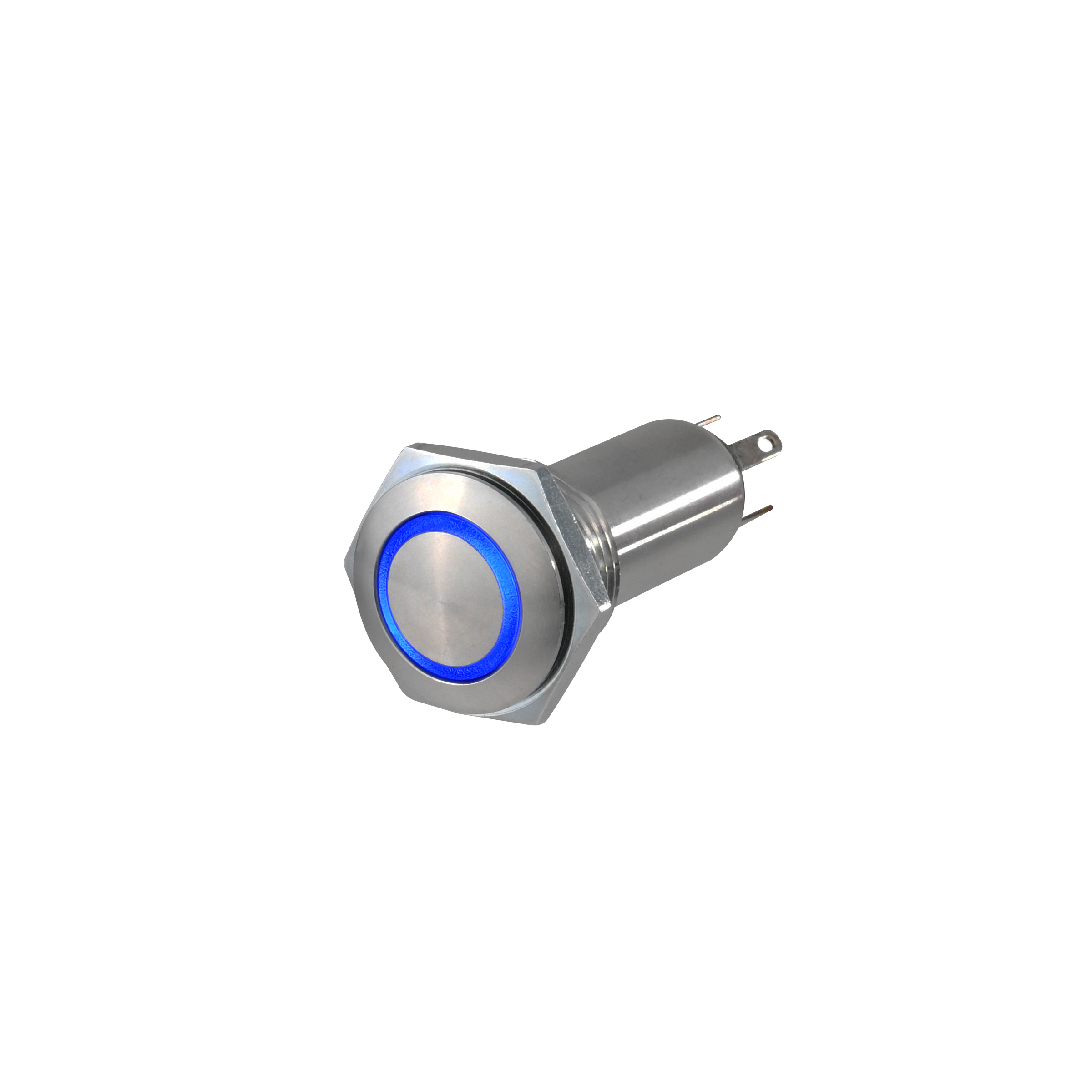

LP3-V71N3214

Heilind Number:OTTLP3-V71N3214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V71N3214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V71N3214
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Low Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.13 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V71N3214

Detailed Description

Introducing the LP3-V71N3214, a rugged and reliable pushbutton switch designed for demanding applications. This vandal-resistant switch features a sleek silver design with a low-profile curved button for easy actuation. With a durable stainless steel housing and sealed construction, it's built to withstand harsh environments. The blue illuminated button provides clear visibility, perfect for low-light conditions. Operating at 115VAC or 28VDC, with a 5A current rating, this switch is suitable for a wide range of industrial and commercial settings. Its momentary action and SPST-NO contact configuration make it ideal for control and signaling tasks. With a high durability rating of 25,000 cycles, you can count on this switch for long-term performance. Upgrade your control panel with the LP3-V71N3214 and experience reliable operation in any conditions.
