LP3-V72H3211

OTTLP3_V72H3211
Heilind Number:OTTLP3-V72H3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V72H3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

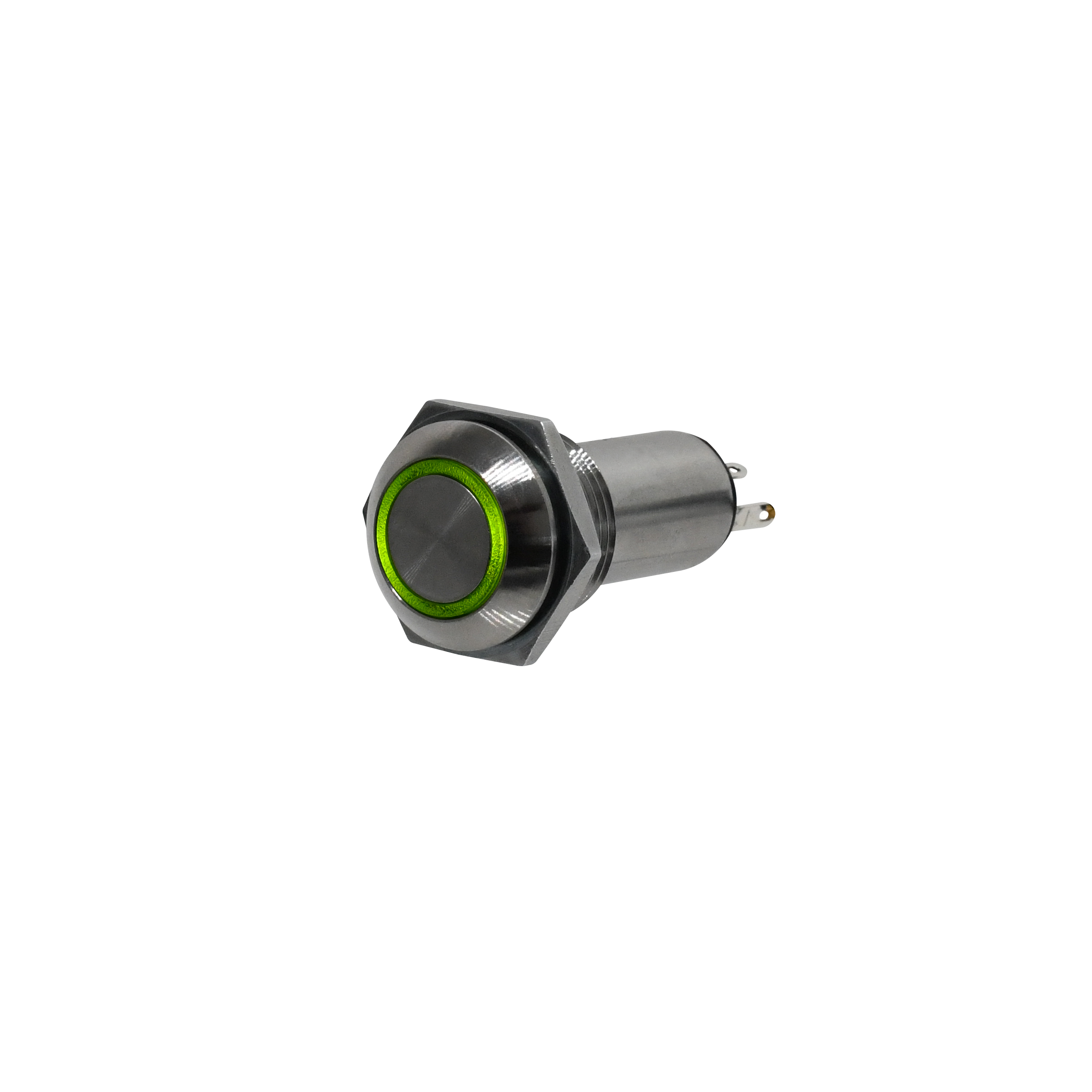

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V72H3211
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (High Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.18 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3-V72H3211

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch with a sleek silver design, perfect for high-profile applications. Featuring a durable stainless steel housing and sealed construction, this switch is built to withstand even the harshest environments. The illuminated green button, with a 12V voltage rating, ensures clear visibility in any lighting conditions. With a momentary action and SPST-NC contact configuration, it offers reliable performance for various industrial settings. Panel mount installation and solder termination make it easy to integrate. Rated for 25,000 cycles and with a wide operating temperature range from -55°C to 85°C, this switch guarantees long-lasting functionality. Ideal for use in aerospace, defense, and other demanding industries, the LP3-V72H3211 is a dependable solution for critical applications.
