LP3-V73H3211

OTTLP3_V73H3211
Heilind Number:OTTLP3-V73H3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V73H3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

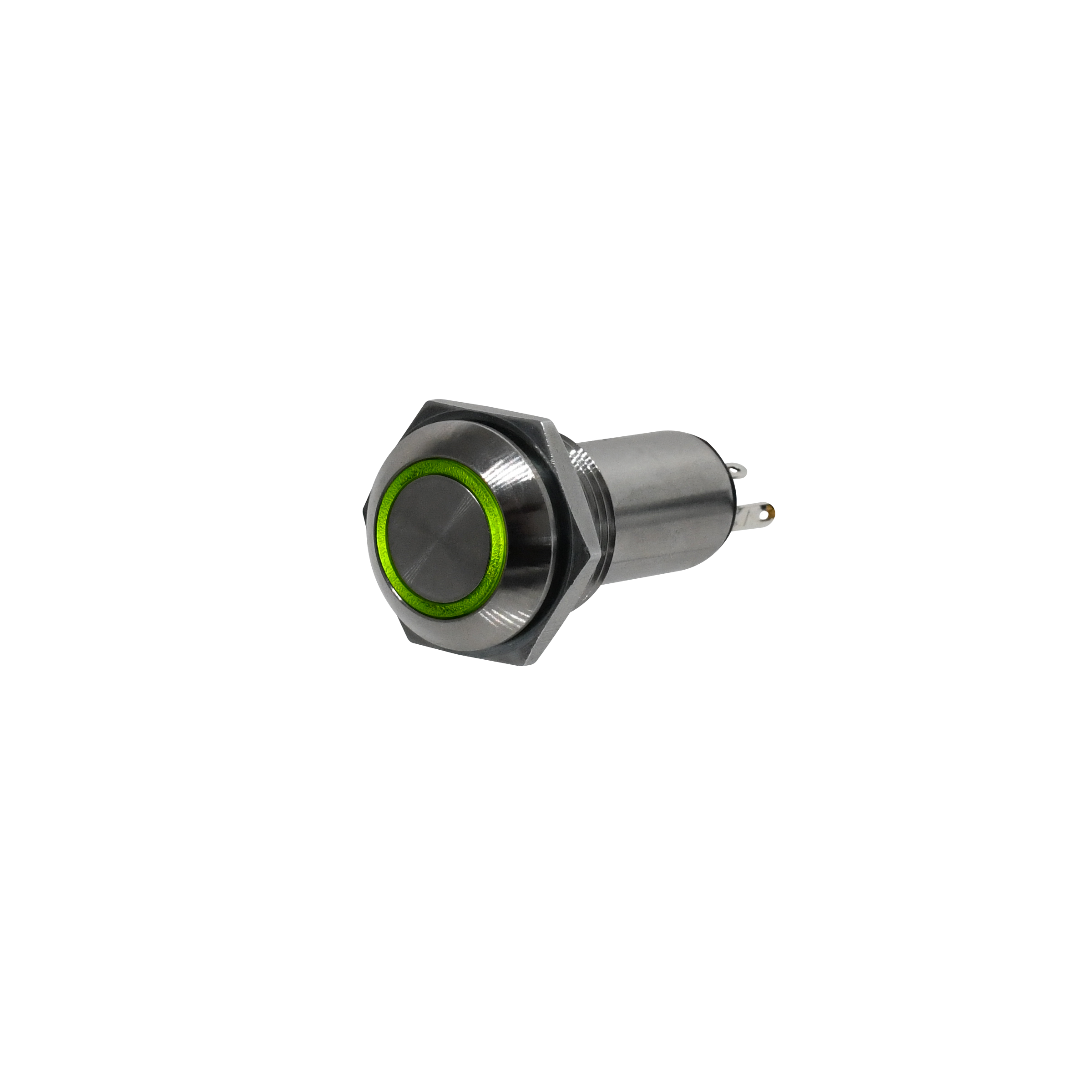

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V73H3211
Series:LP3-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.18 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3-V73H3211

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, a durable and reliable solution for demanding environments. Featuring a sleek silver design with a high profile flat button actuator, this switch is not only visually appealing but also highly functional. With an IP6K8S rating, it is completely sealed against dust and water ingress, ensuring long-lasting performance. The illuminated green button provides clear visibility, while the momentary action SPDT contact configuration offers versatile functionality. Constructed with stainless steel housing and actuator materials, this switch is built to withstand harsh conditions. With a wide operating temperature range from -55°C to 85°C and a durability rating of 25,000 cycles, it is suitable for a variety of applications. Panel mount installation and solder termination make for easy integration. Whether in industrial, automotive, or marine settings, the LP3-V Series switch guarantees reliable operation.
