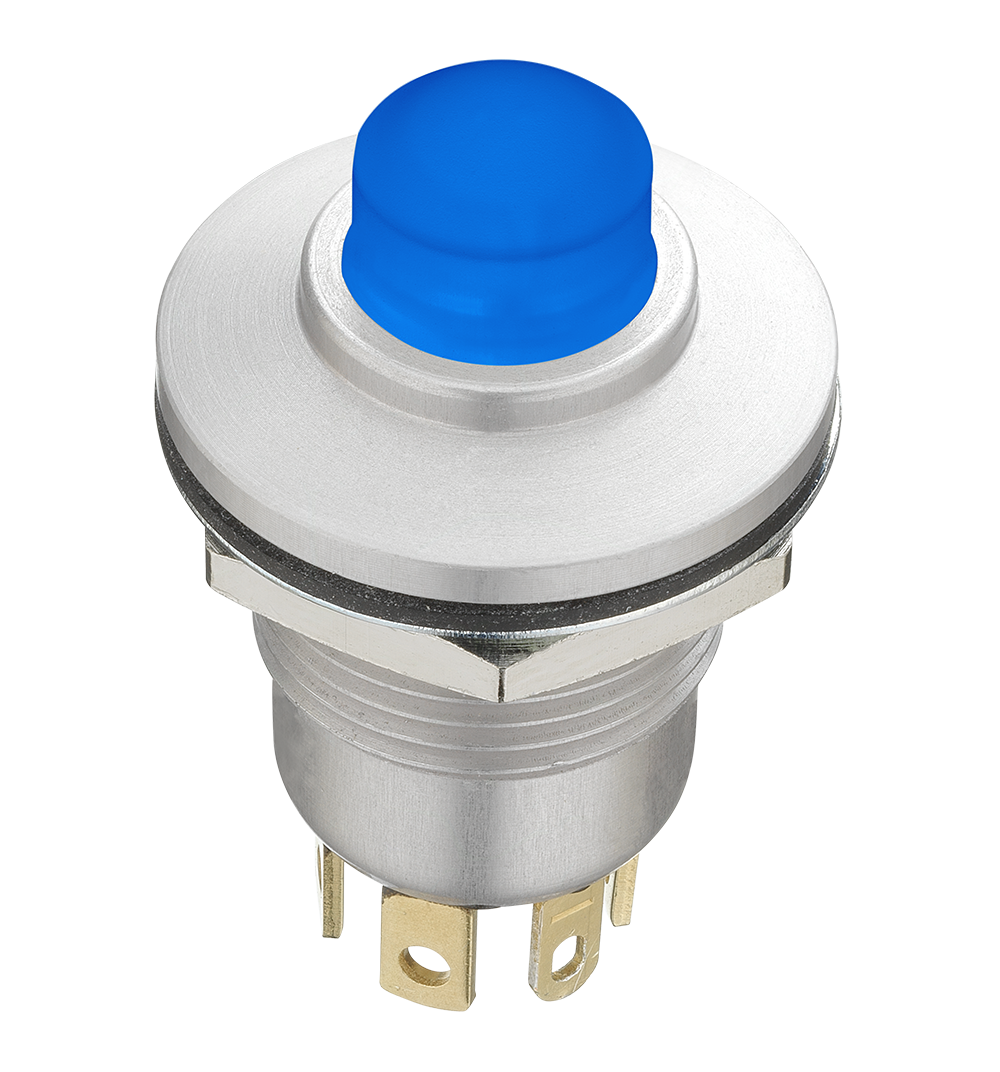

LP3S-33A321R

OTTLP3S_33A321R
Heilind Number:OTTLP3S-33A321R
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-33A321R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-33A321R
Series:LP3S
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3S-33A321R

Detailed Description

Introducing the LP3S-33A321R, a high-performance momentary pushbutton switch with a sleek and durable design. Featuring a red translucent cap and illuminated button, this switch is not only functional but also visually appealing. With an IP6K8S rating, it guarantees protection against dust and water ingress, making it suitable for a wide range of applications. The button, made of thermoplastic material, offers a comfortable actuation experience, while the silver-plated brass contacts ensure reliable conductivity. Ideal for panel mounting, this switch has a short behind-panel depth, perfect for space-constrained installations. Operating at temperatures ranging from -55°C to 85°C, and with a durability rating of 25,000 cycles, it promises long-lasting performance in demanding environments. Whether used in industrial machinery, automotive controls, or aerospace systems, the LP3S-33A321R is a trusted solution for your switching needs.
