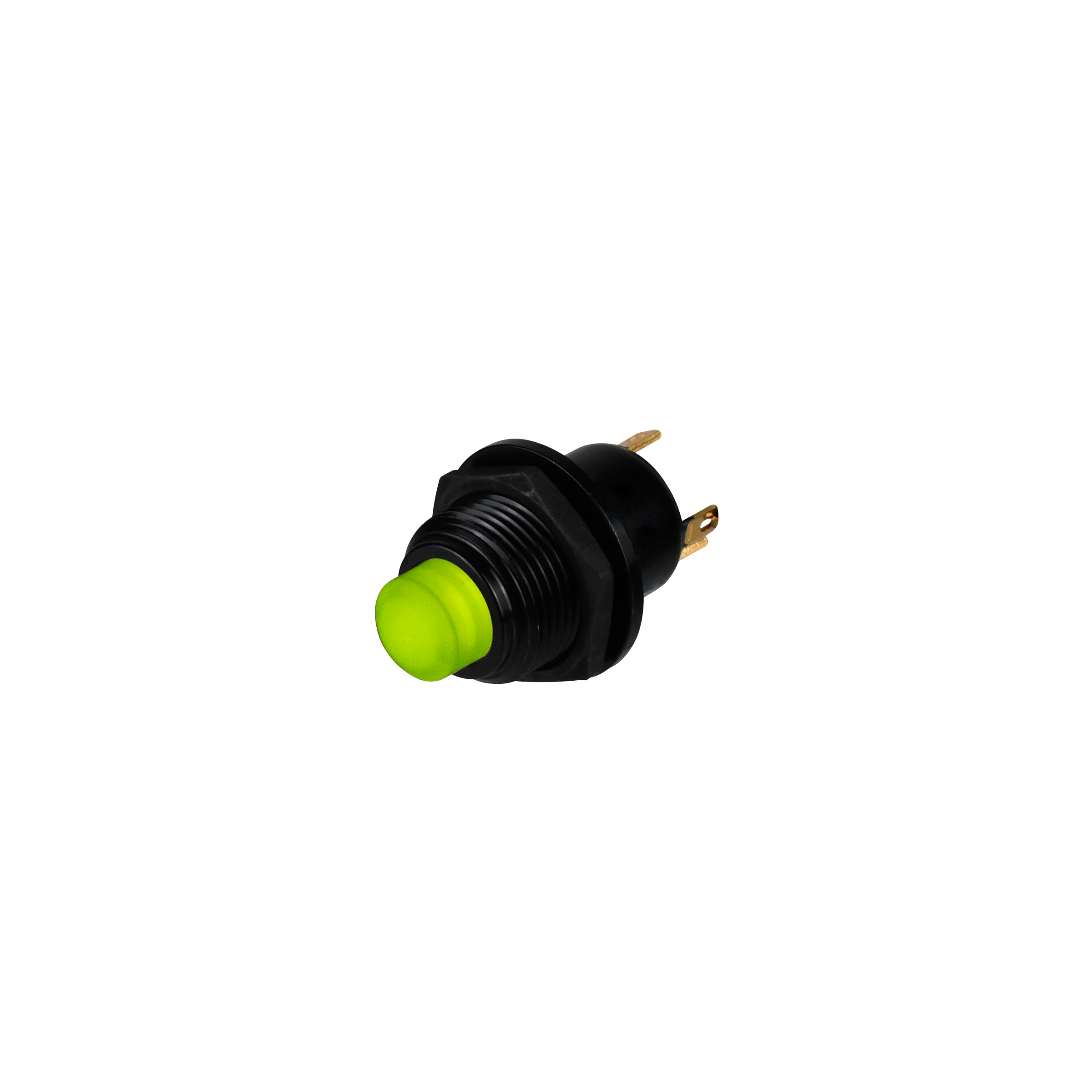

LP3S-61H322W

OTTLP3S_61H322W
Heilind Number:OTTLP3S-61H322W
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-61H322W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-61H322W
Series:LP3S
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3S-61H322W

Detailed Description

Introducing the LP3S-61H322W, a high-performance momentary pushbutton switch designed for reliable operation in demanding environments. With a durable aluminum housing and IP6K8S sealing, this switch is built to withstand harsh conditions. The exposed dome actuator, featuring a round shape and green illuminated indicator, offers tactile feedback and visibility in low-light settings. The SPDT contact configuration and 5A current rating ensure versatile and efficient functionality. Panel mount installation and quick connect termination make integration easy, while the 25,000-cycle durability rating guarantees long-lasting performance. Suitable for use in a wide range of applications, from industrial machinery to transportation systems, the LP3S-61H322W is a dependable choice for your switching needs.
