LP3S-A11A3424

OTTLP3S_A11A3424
Heilind Number:OTTLP3S-A11A3424
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-A11A3424
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

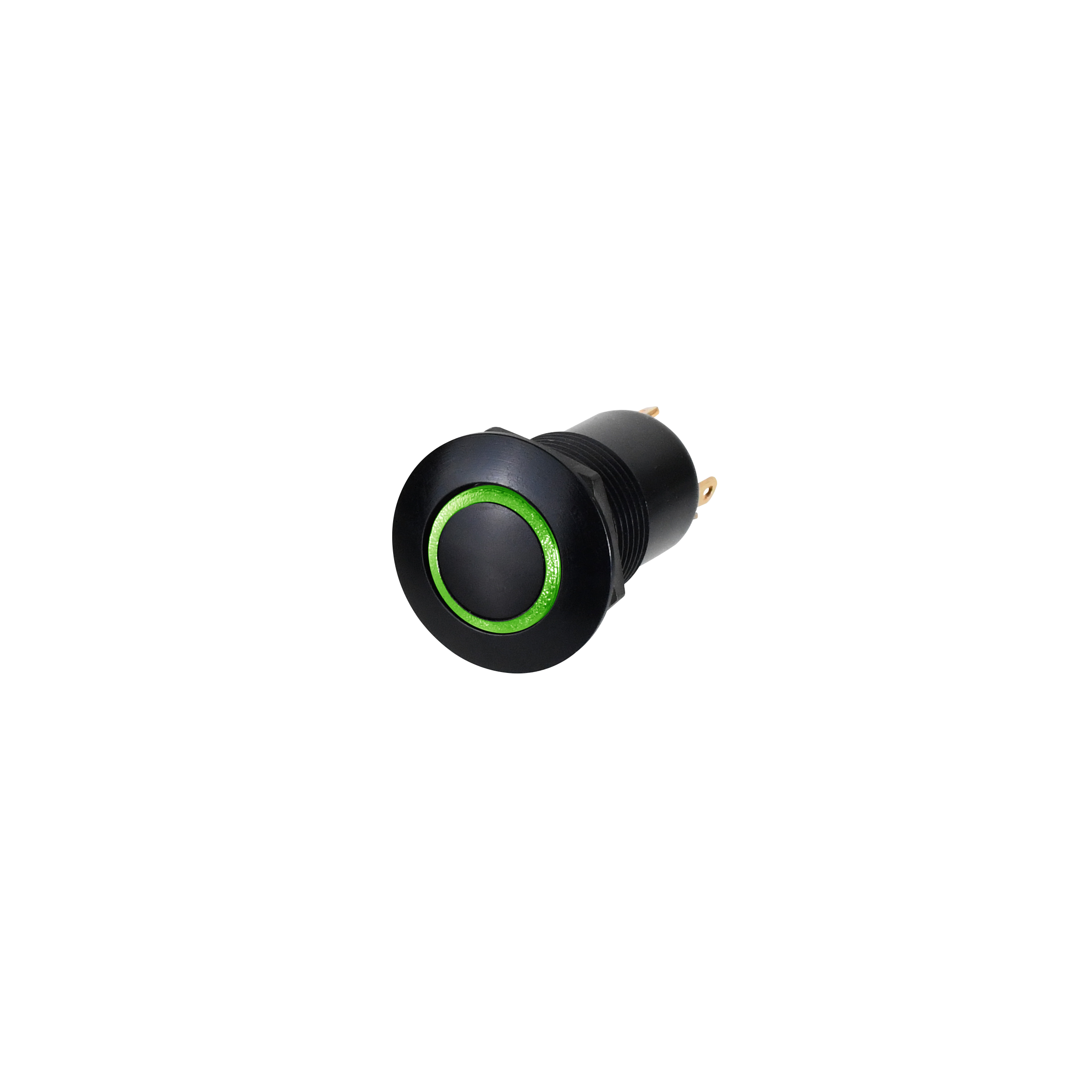

Shorter Behind Panel, Illuminated, Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-A11A3424
Series:LP3S
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Low Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.13 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3S-A11A3424

Detailed Description

Introducing the LP3S Series Black Illuminated Vandal Resistant Pushbutton Switch, featuring a low profile curved button design for sleek aesthetics. With an IP6K8S rating, this switch is sealed for reliable performance in harsh environments. The durable aluminum housing and silver contact plating ensure longevity, with a 25,000-cycle durability rating. Operating at 115VAC or 28VDC, and with a 5A current rating, it is suitable for a variety of applications. The red illumination with a 2V voltage rating provides clear indication of switch status. Perfect for panel mounting with solder termination, this SPST-NO switch offers Off-(On) functionality. From automotive to industrial settings, the LP3S-A11A3424 is a versatile and dependable choice for high-performance switching needs.
