LP3S-A51A3213

OTTLP3S_A51A3213
Heilind Number:OTTLP3S-A51A3213
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-A51A3213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

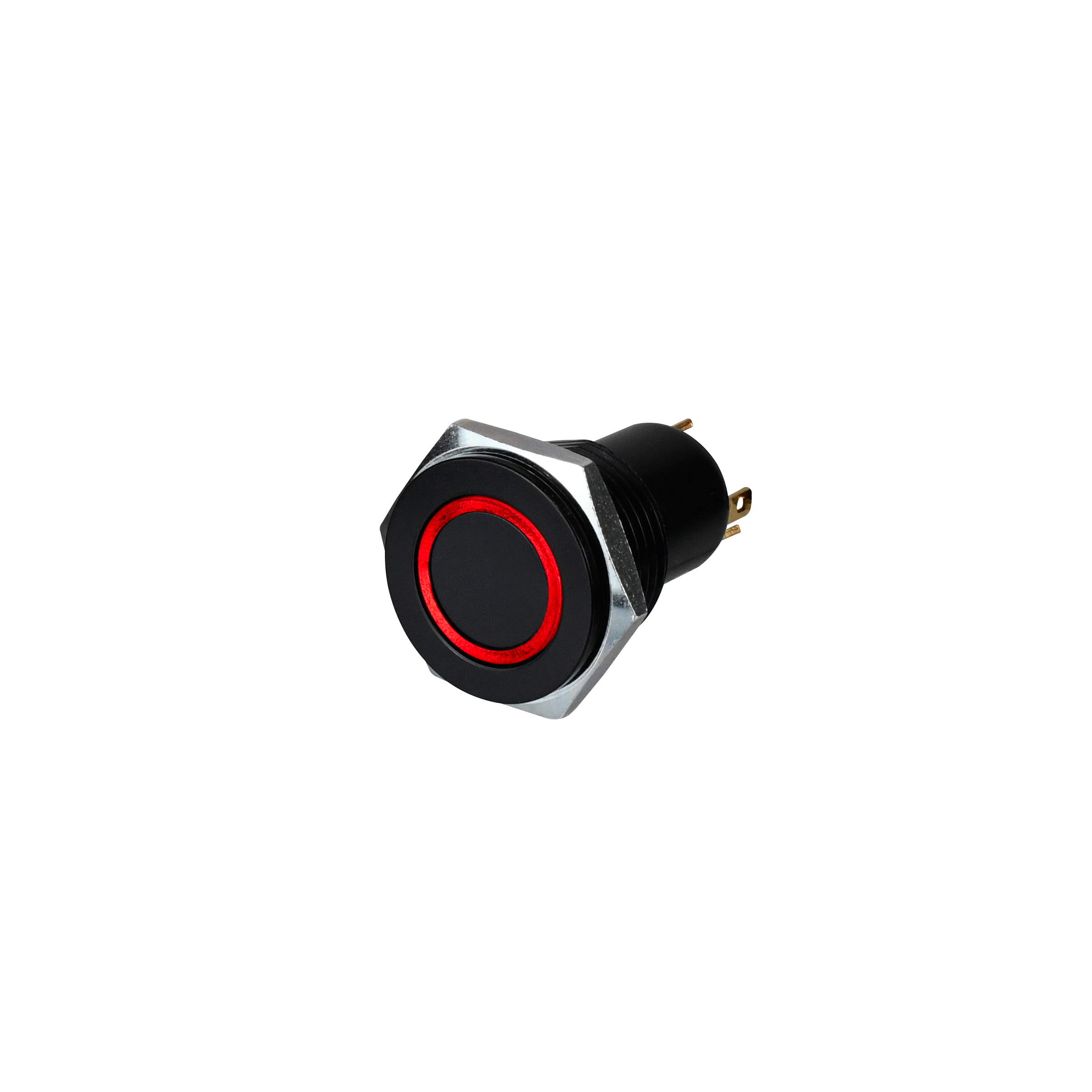

Shorter Behind Panel, Illuminated, Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-A51A3213
Series:LP3S
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Low Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.091 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3S-A51A3213

Detailed Description

Introducing the LP3S-A51A3213, a sleek and durable pushbutton switch designed for high-performance applications. With a silver cap and case, this switch not only looks sophisticated but also boasts an impressive IP6K8S rating for water and dust resistance. The illuminated button, featuring a round, low-profile flat actuator, is not only visually appealing with its striking red color but also provides clear indication of operation. Constructed with brass contacts and aluminum housing, this switch offers reliable performance with a current rating of 5 A and a durability rating of 25,000 cycles. Suitable for panel mounting and featuring solder termination, it ensures easy installation in various setups. Whether in industrial machinery or consumer electronics, the LP3S-A51A3213 is the perfect choice for demanding environments where quality and performance are paramount.
