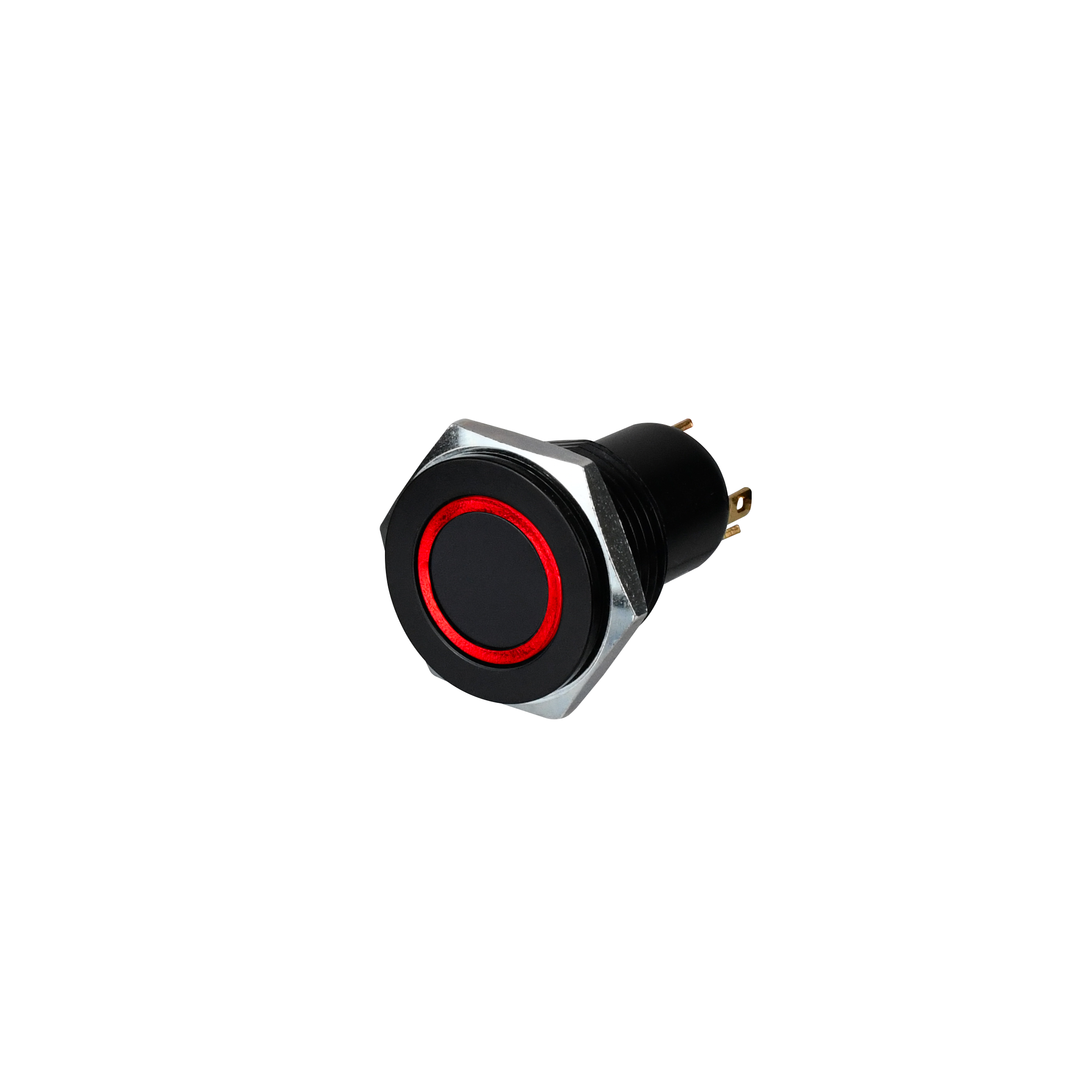

LP3S-A51A3215

OTTLP3S_A51A3215
Heilind Number:OTTLP3S-A51A3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-A51A3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Shorter Behind Panel, Illuminated, Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-A51A3215
Series:LP3S
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Flush Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.047 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3S-A51A3215

Detailed Description

Introducing the LP3S-A51A3215, a sleek and durable pushbutton switch designed for high-reliability applications. With a silver aluminum housing and flush-profile flat button, this switch offers both style and functionality. Its IP6K8S rating ensures protection against dust and water ingress, making it ideal for outdoor or industrial use. The red illuminated button, powered by a 2V voltage, provides clear visibility in any environment. Featuring a single-pole, single-throw normally open contact configuration, this switch is perfect for momentary on/off control. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, it is suitable for a wide range of power applications. Additionally, its solder termination type and panel mount installation make for easy and secure integration. Built to last, this vandal-resistant switch has a durability rating of 25,000 cycles and can operate in temperatures ranging from -55°C to 85°C. Upgrade your control panel with the LP3S-A51A3215 and experience reliable performance in any environment.
